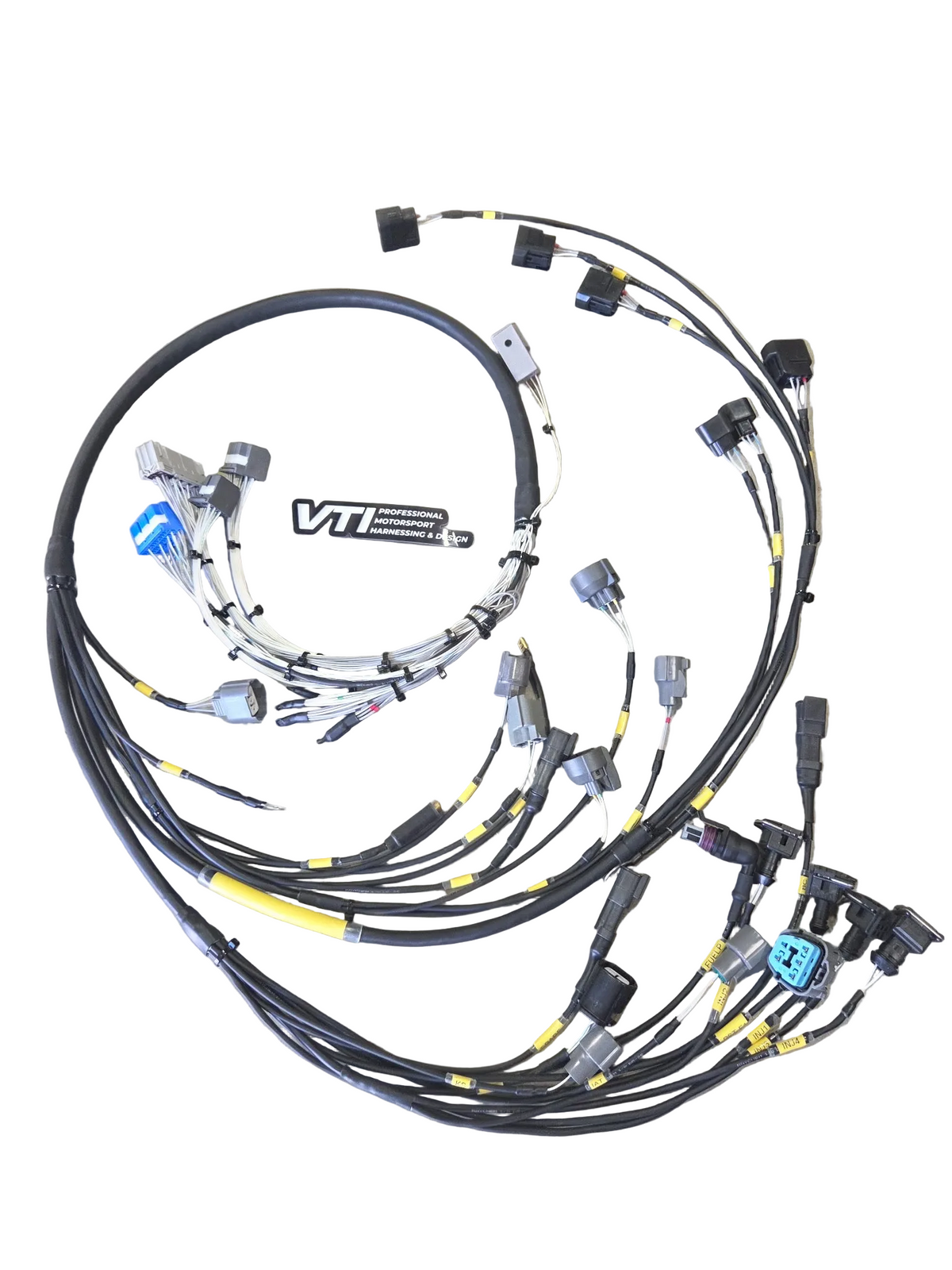

VTI Link G4X Engine Harness – CivicLink HC96X / Honda OBD2A

Purpose-built engine wiring harness for the Link G4X CivicLink HC96X ECU and Honda OBD2A H/B-series applications.

Non-cancelable once ordered. This VTI in-house engine loom is excluded from the 24-hour cancellation window. No change-of-mind returns or refunds. Confirm your engine, ECU, connectors, and selected options before purchasing, or contact VTI Motorsports for help. Rights relating to defective, incorrect, or misdescribed goods, shipment delays, non-delivery, and other rights required by law remain unaffected. See our Return and Refund Policy.

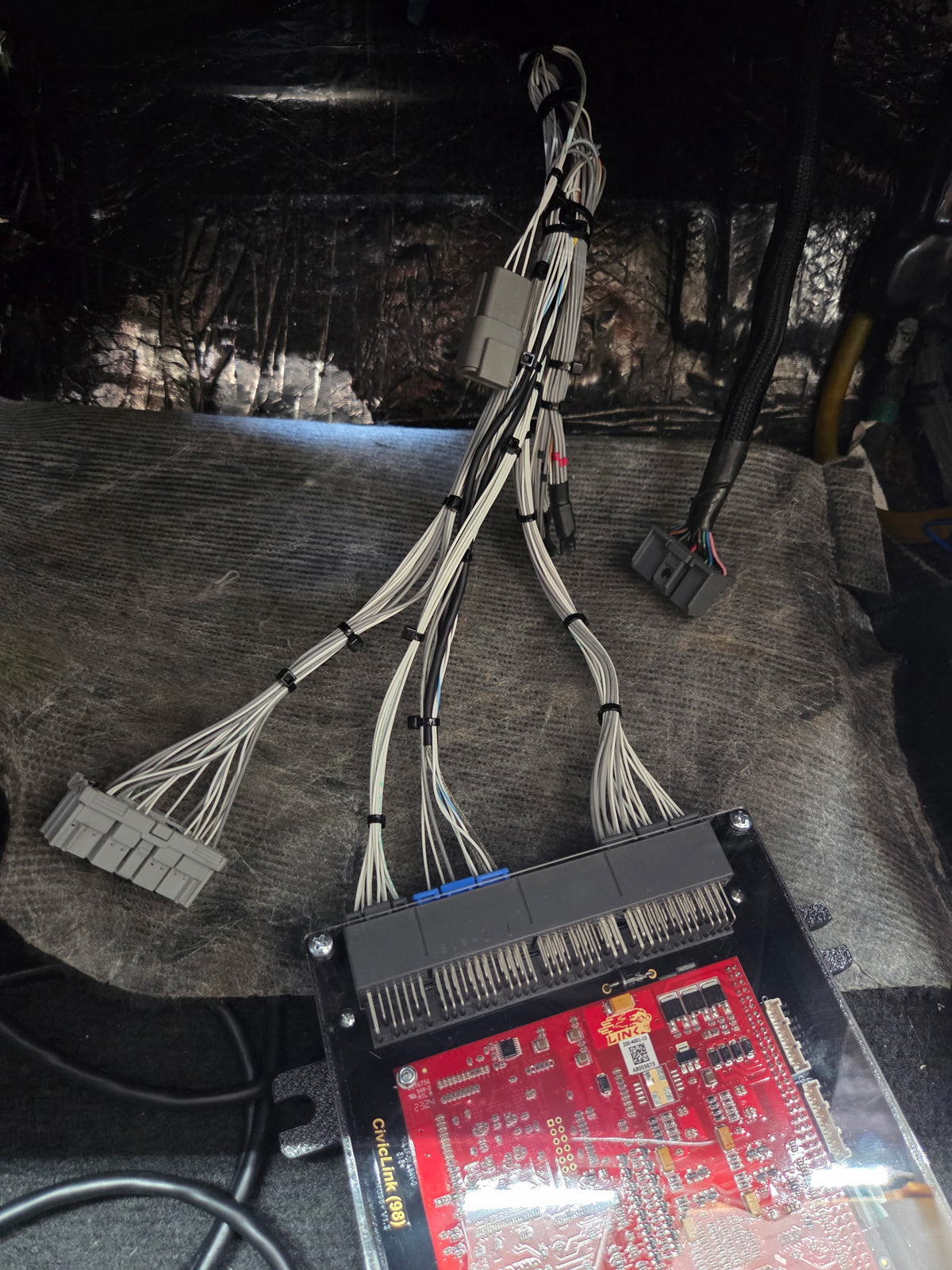

The Link G4X CivicLink HC96X (206-4000) is the Honda 1996–1998 OBD2A ECU platform this loom is built around. The harness brings Link-specific engine-management connections, additional sensor provisions, and selectable trigger configurations into one engine-side assembly.

A purpose-built Link ECU PNP engine loom designed for OBD2A Honda H/B-series applications, with direct C101 chassis integration and integrated sensor wiring and engine-management connections.

Developed around the Honed Development dual K-series crank/cam trigger system, this loom provides a clean path to modern sequential ignition and engine management while retaining straightforward Honda chassis integration.

Built as a complete engine-side loom — not a universal standalone harness or adapter.

Sensors are not included. The sensor connections below are pre-wired provisions for separately purchased sensors.

Integrated From the Start

The additional standalone circuits are built directly into the loom, including:

• Bosch combination-sensor wiring with a 5-pin connector
• Two AEM pressure-sensor wiring provisions with Aptiv/Delphi-style 3-pin connectors
• One additional AEM temperature-sensor wiring provision with an Aptiv/Delphi-style 3-pin connector
• Wideband DTM connection
• Spare ECU input
• Spare ECU output
• Direct coil-fire wiring
• Direct injector wiring
• OBD2A C101 chassis integration

Everything is integrated into one clean engine loom instead of relying on a collection of external add-on harnesses.

Configurable Trigger System

The loom architecture supports multiple ignition and trigger configurations:

Stock Distributor · Honed Development · Snake · T1

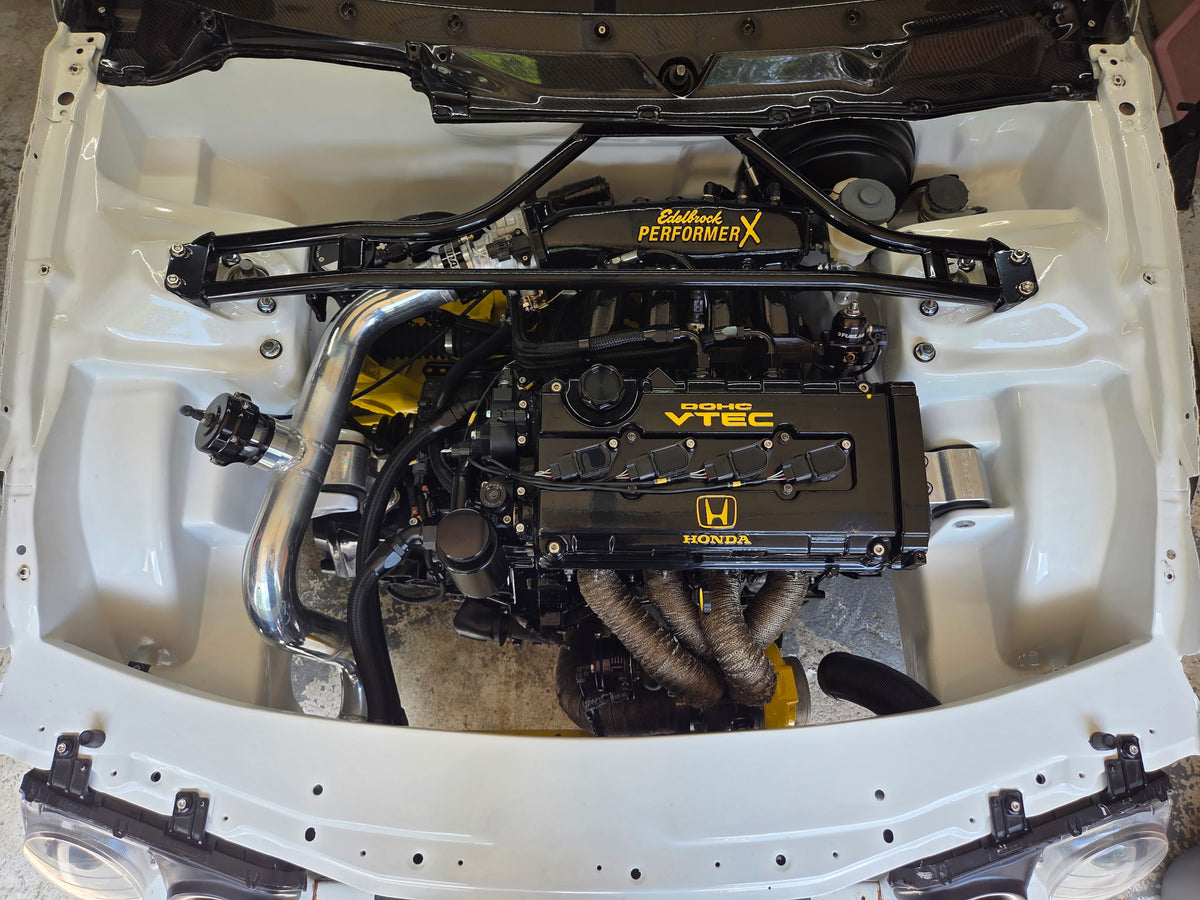

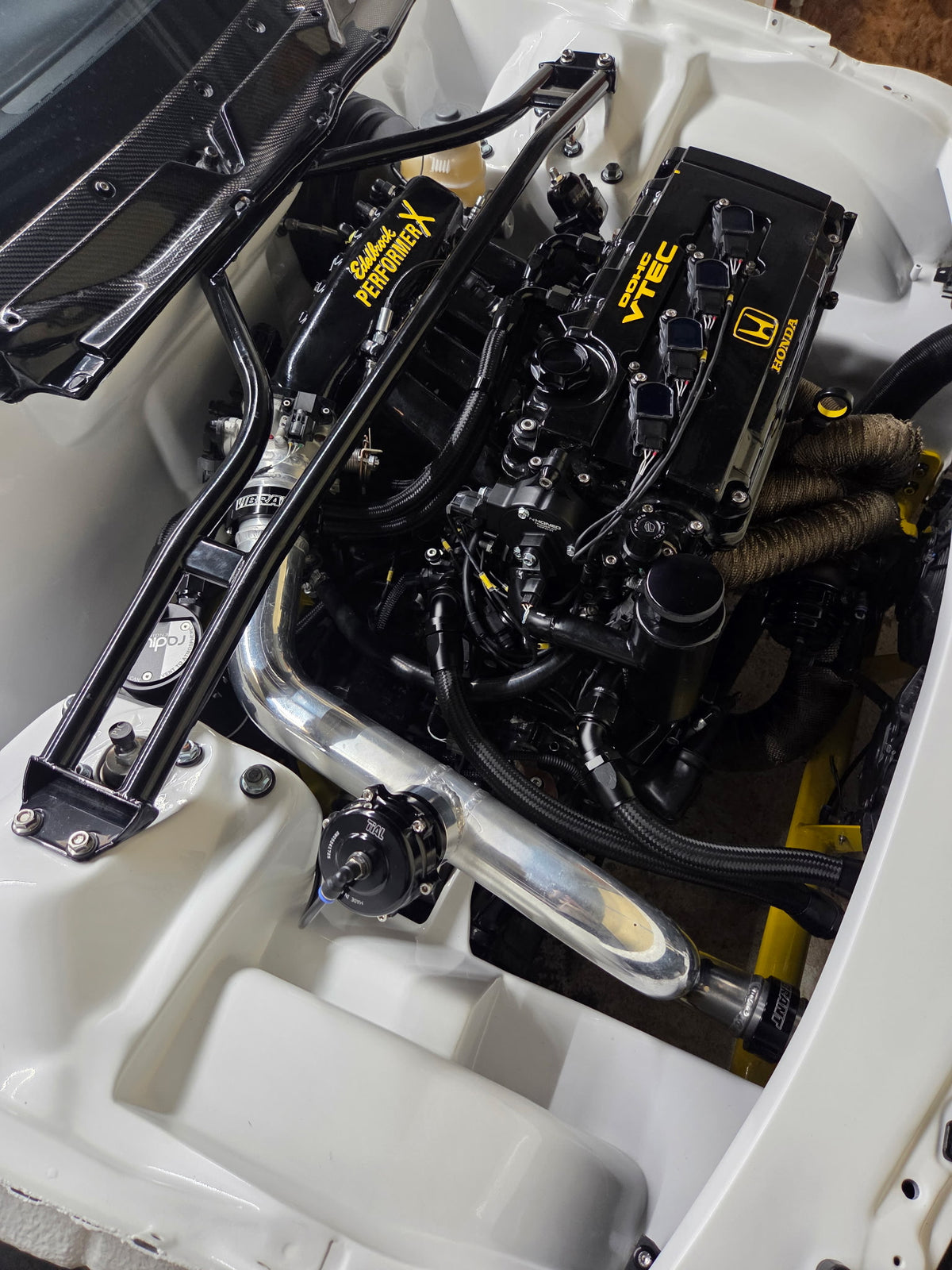

The pictured/development configuration utilizes the Honed Development dual K-series crank/cam trigger kit.

Select the appropriate termination when ordering.

Injector Options

Injector connector configuration is selectable to match your injector setup.

Built for H & B Series

Designed around common OBD2A Honda applications including:

H22 · H23 · B16 · B18 · B20

The same VTI production architecture carries across the platform while allowing the engine, trigger, injector, and ECU configuration to be specified at order.

VTI Motorsports Construction

Built to the VTI Motorsports standard with controlled routing, Motorsport-grade connectorization, integrated branch construction, wire identification, and full electrical testing before leaving VTI.

The result is a clean, serviceable engine loom that gives a modern Link ECU installation the fit and integration of a purpose-built Honda harness.

Simple Options. Complete Integration.

Select your trigger system.
Select your injector connectors.
Plug into the OBD2A chassis.
Wire the engine.

Engine loom only. Sensors are not included. Sensor provisions include wiring and connector terminations; select sensors with matching connectors and confirm pinouts and ECU calibration before installation.

VTI Motorsports

Mil-spec materials. Motorsport construction. Honda-specific engineering.

Manufactured in Vermont, USA.

Explore VTI Wiring Harnesses

Browse our VTI in-house wiring harnesses or request a custom engine harness for a different chassis, engine or ECU configuration.

Link ECU Platform

Designed for the Link G4X CivicLink HC96X. Match the ECU, chassis connections, engine hardware, and selected trigger configuration to your installation. The ECU requires configuration and calibration for your build.

For stock Honda OBD1 engine-management logic using a P28 or Hondata S300, see our Honda H/B-series OBD1 engine harness.
