VTI Link Razor PDM Modular Breakout Loom

A modular, universal breakout loom for the Link Razor PDM, organized by electrical function group to give your installation a clear starting point.

Choose the loom for your own Link Razor PDM, or select the loom and PDM package. Vehicle-specific integration is required.

Construction

• Genuine SPEC 55 wire and cable, assembled using industry-standard MIL tooling
• Concentrically twisted branches with VTI UK-printed DR-25
• 36-inch 4 AWG battery leads
• Raychem molded boot at the Superseal connector
• Booted DTM sensor-input connections
• DT configurable I/O and DTP high-power connections, backshelled or booted where applicable
• SCL protection where applicable and epoxy sealing where required
• Readable yellow labels protected by a clear SCL overlay

Package options

Loom Only: VTI modular breakout loom for a customer-supplied Link Razor PDM.

Loom + Link Razor PDM: The same loom with Link Razor PDM hardware included.

Included documentation

A full pinout and signed production document are supplied with delivery.

Plan your installation

Device extensions and a full engine harness are not included. Device extensions are planned to be available separately through the future VTI app.

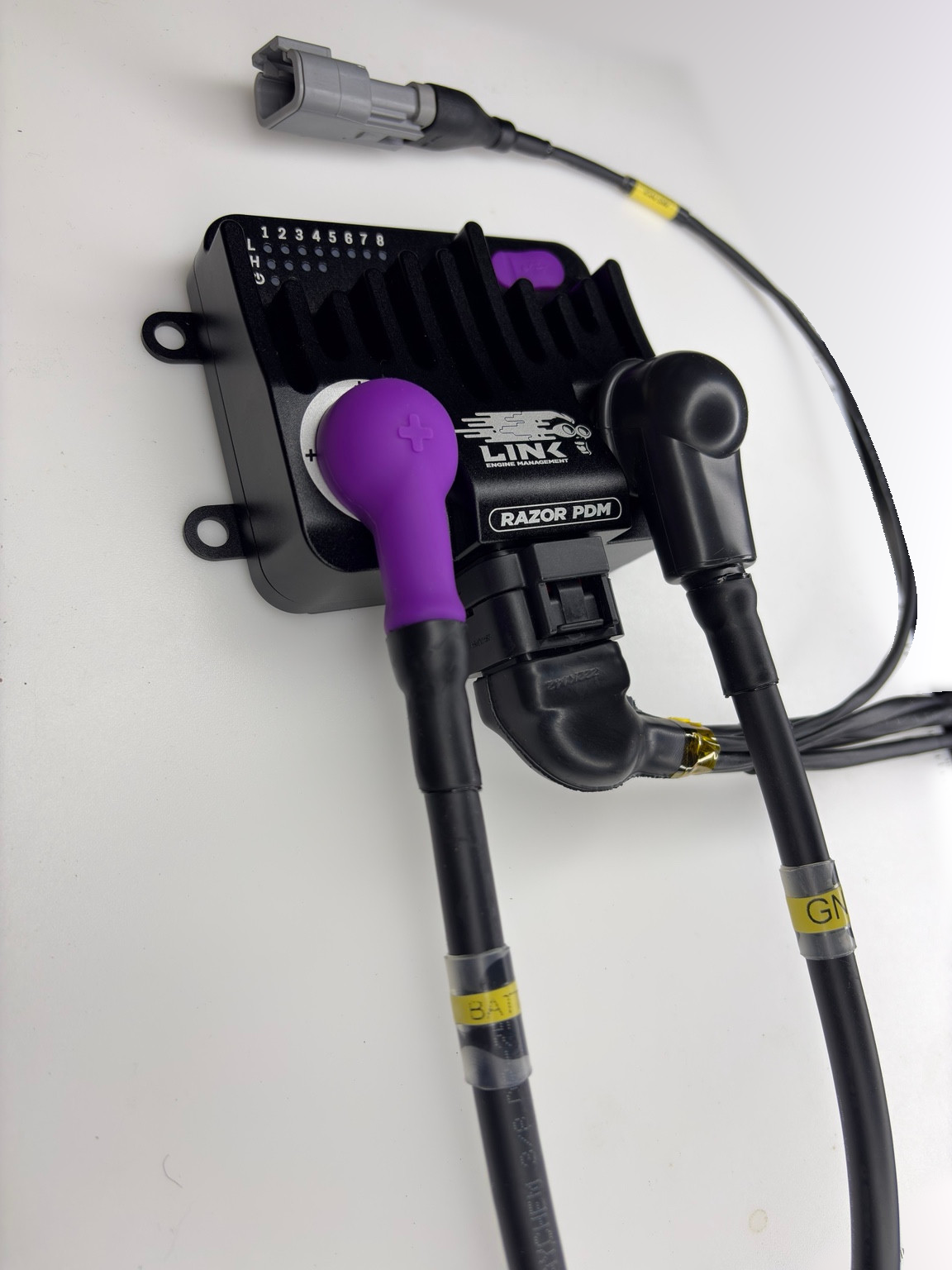

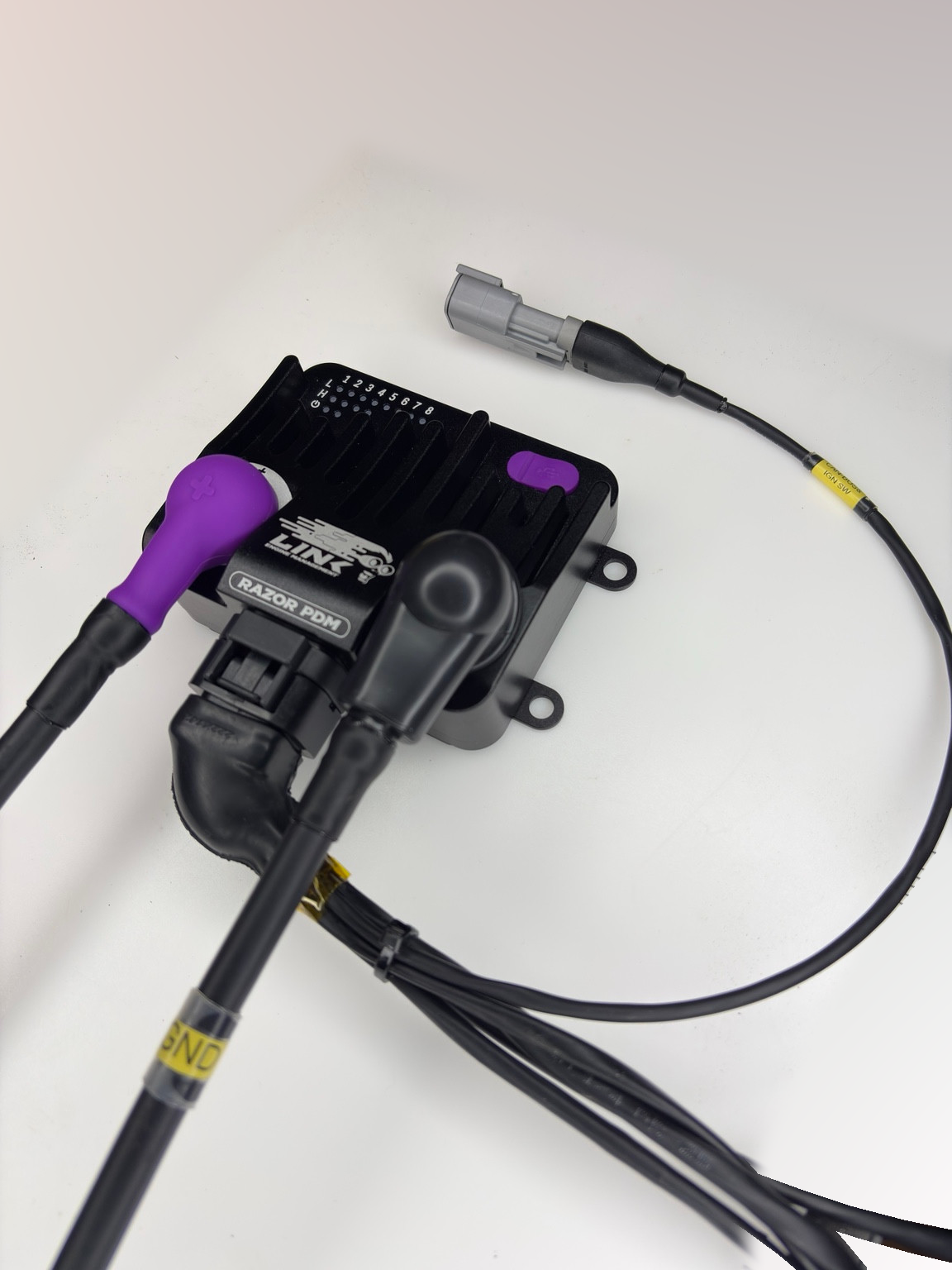

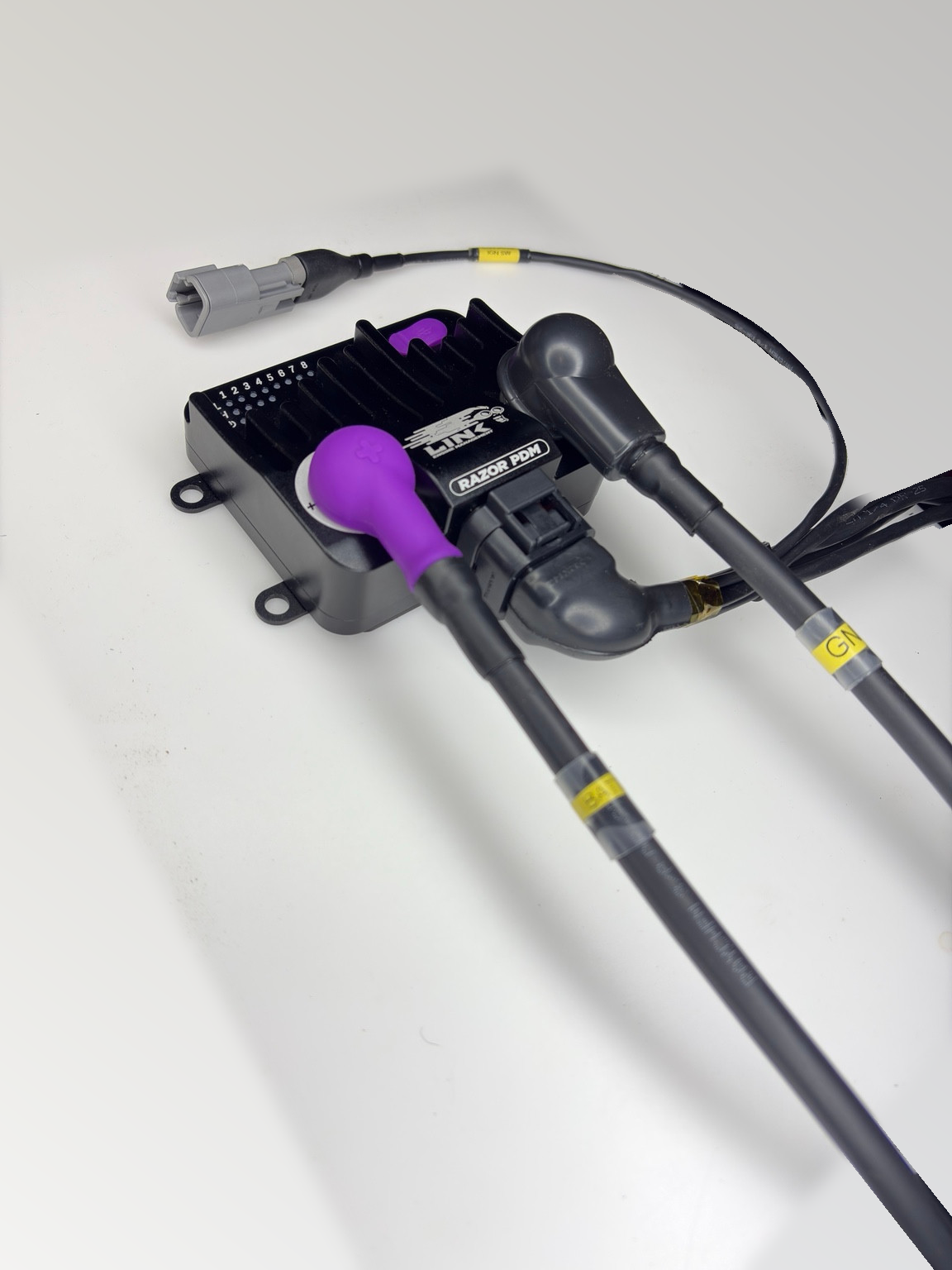

Photos show a custom-build example. Additional branches and final layout may vary from the base loom. The PDM shown is included only with the Loom + Link Razor PDM option.
