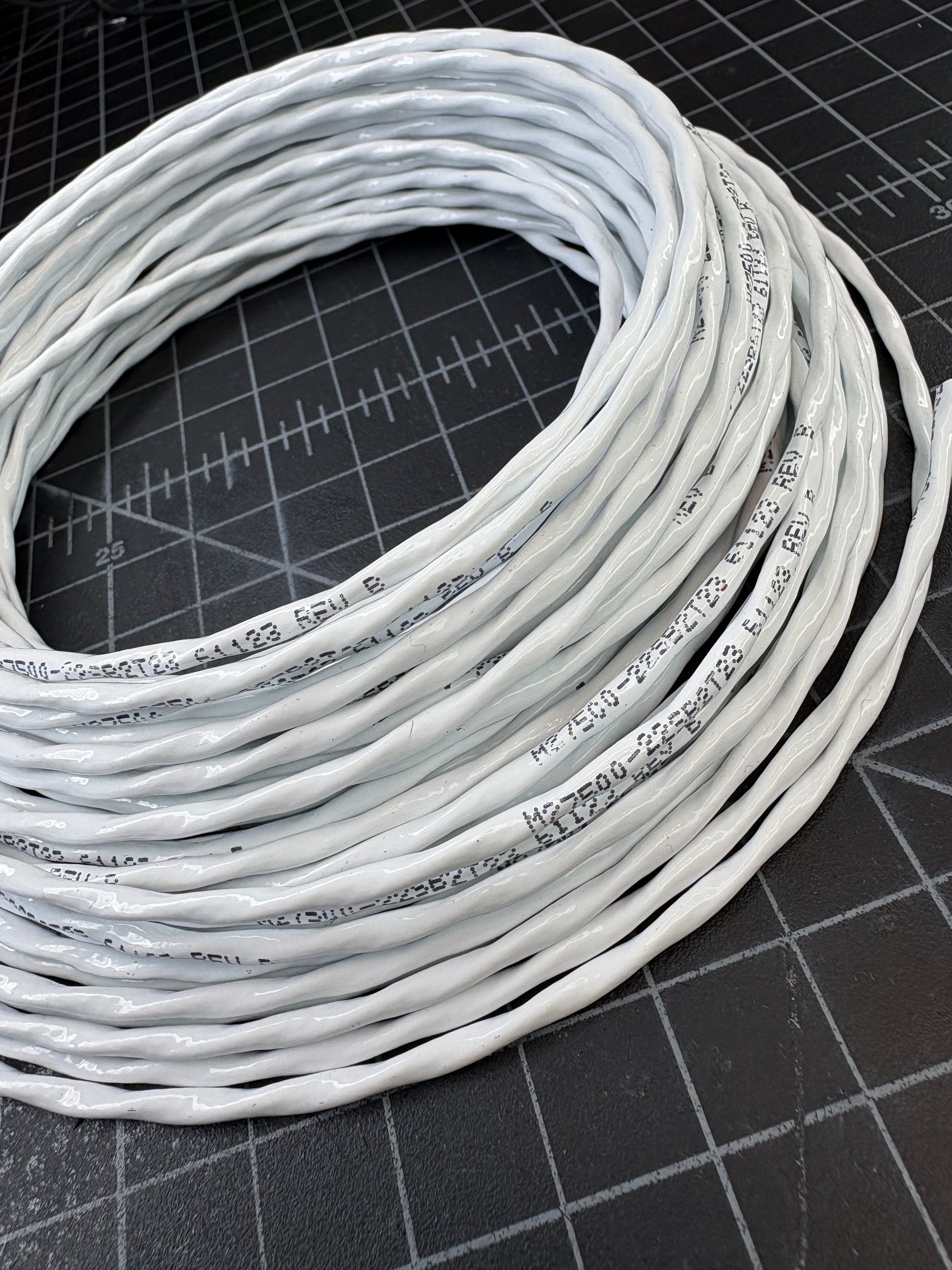

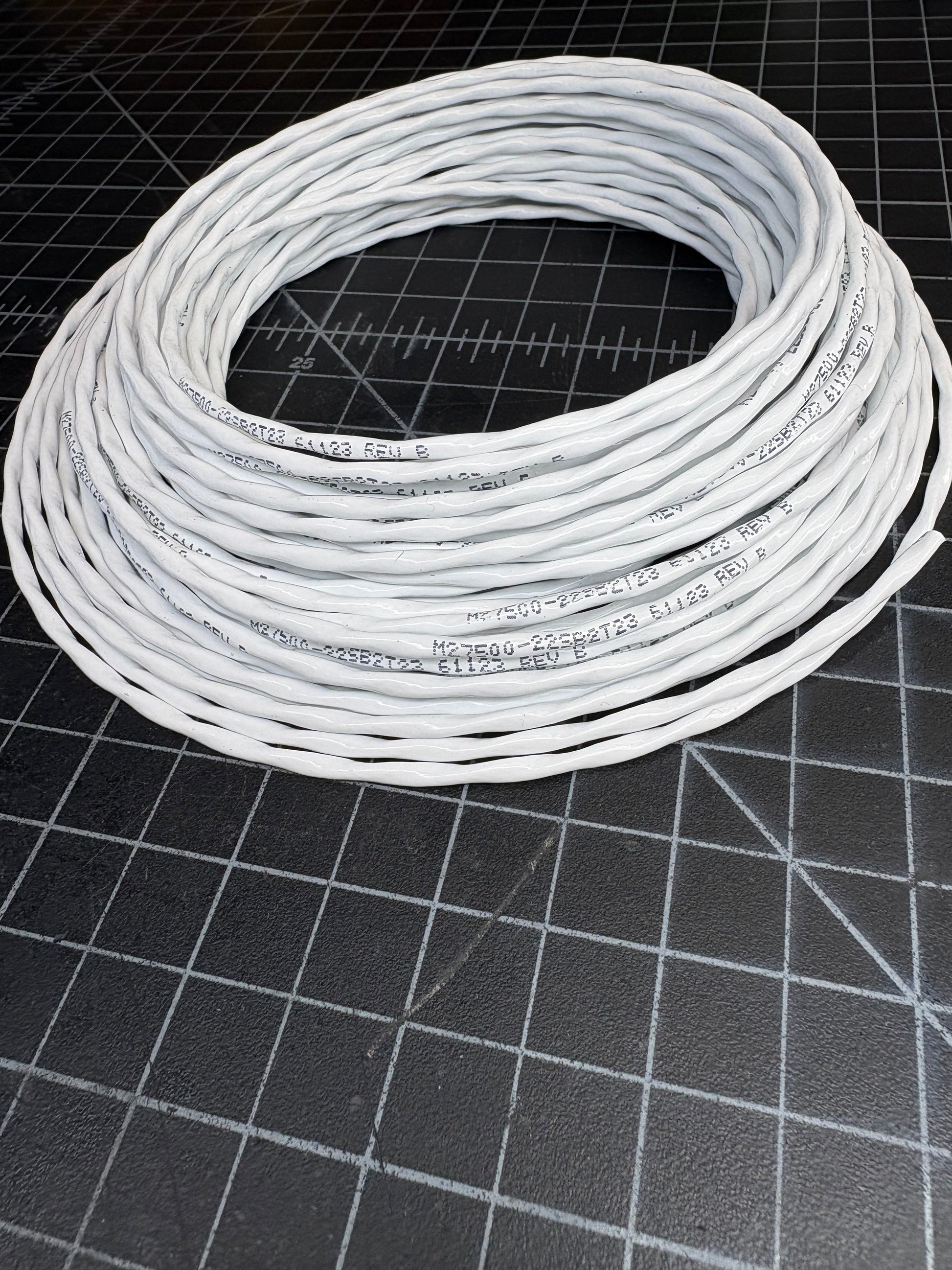

MIL-DTL-27500 Spec 55 Shielded Cable – M22759/32-22 (Sold by the Foot)

Professional Motorsport Shielded Wire – Spec 55 / MIL-C-27500 22AWG

We now offer genuine motorsport-grade MIL-DTL-27500 shielded cable built with M22759/32 tin-plated copper conductors and cross-linked modified Tefzel (XLETFE) insulation. These are 22AWG conductor sizes for minimum Cross Width.

Commonly referred to as:

• MIL-C-27500

• MIL-DTL-27500

• NEMA WC27500

• SPEC 55 cable

• 55A wire

• TE Raychem WC-27500 equivalent

This is the same style of shielded cable used in professional motorsport harnesses, aerospace wiring, and high-end ECU installations.

Available by the foot with in-stock quantities displayed. Spool options coming soon.

Available Configurations

We currently offer:

• Single Conductor Shielded

• 2-Conductor Shielded

• 3-Conductor Shielded

Additional conductor counts and spool options will be added as inventory expands.

Cable Construction & Specifications

Specification: MIL-DTL-27500 (NEMA WC27500)
Conductor: M22759/32 tin-plated copper
Primary Insulation: Cross-linked modified Tefzel (XLETFE)
Shield: Tin-plated copper braid
Outer Jacket: Cross-linked modified Tefzel (XLETFE)
Voltage Rating: 600V
Temperature Rating: +150°C

Comparable to 55A11X1 and other SPEC 55 constructions used in professional motorsport harness builds.

Ideal Applications

This cable is designed for high-noise, signal-sensitive circuits including:

• Crank position sensor (CKP) such as the K24 Crank Angle Sensor connector.

• Cam position sensor (CMP)

• Knock sensor

• Wheel speed sensors

• CAN bus circuits

• Shielded analog inputs

• ECU trigger inputs

• Flex fuel sensor wiring

• Motorsport data logging systems

Perfect for:

• Haltech installations

• FuelTech installations

• MoTeC harness builds

• K-swap shielded sensor wiring

• Professional motorsport harness construction


Why Use MIL-27500 Shielded Cable?

Unlike generic automotive shielded wire, MIL-DTL-27500 construction provides:

• Aerospace-grade insulation

• Superior chemical resistance

• High temperature tolerance

• Excellent EMI/RFI shielding

• Long-term durability in harsh engine bay environments

This is the correct way to wire crank and cam circuits in high-performance applications.

In-Stock & Ready to Ship

We maintain real-time inventory on this product. What is listed as available is physically in stock and ready to ship.

Orders ship via expedited 2-day service to ensure builders can complete shielded wiring correctly and without delay.

No backorders. No guessing.

Sold By The Foot

Order exactly the length you need.
Future spool options will be available for professional harness shops and high-volume builders.

Installation Notes

Shield drain should be properly terminated at sensor ground or ECU-designated shield termination point depending on system design.

Professional wiring knowledge is recommended!
