Bosche 2200CC Injectors (NO TOP-HATS)
Bosche 2200CC Injectors (NO TOP-HATS)
Couldn't load pickup availability

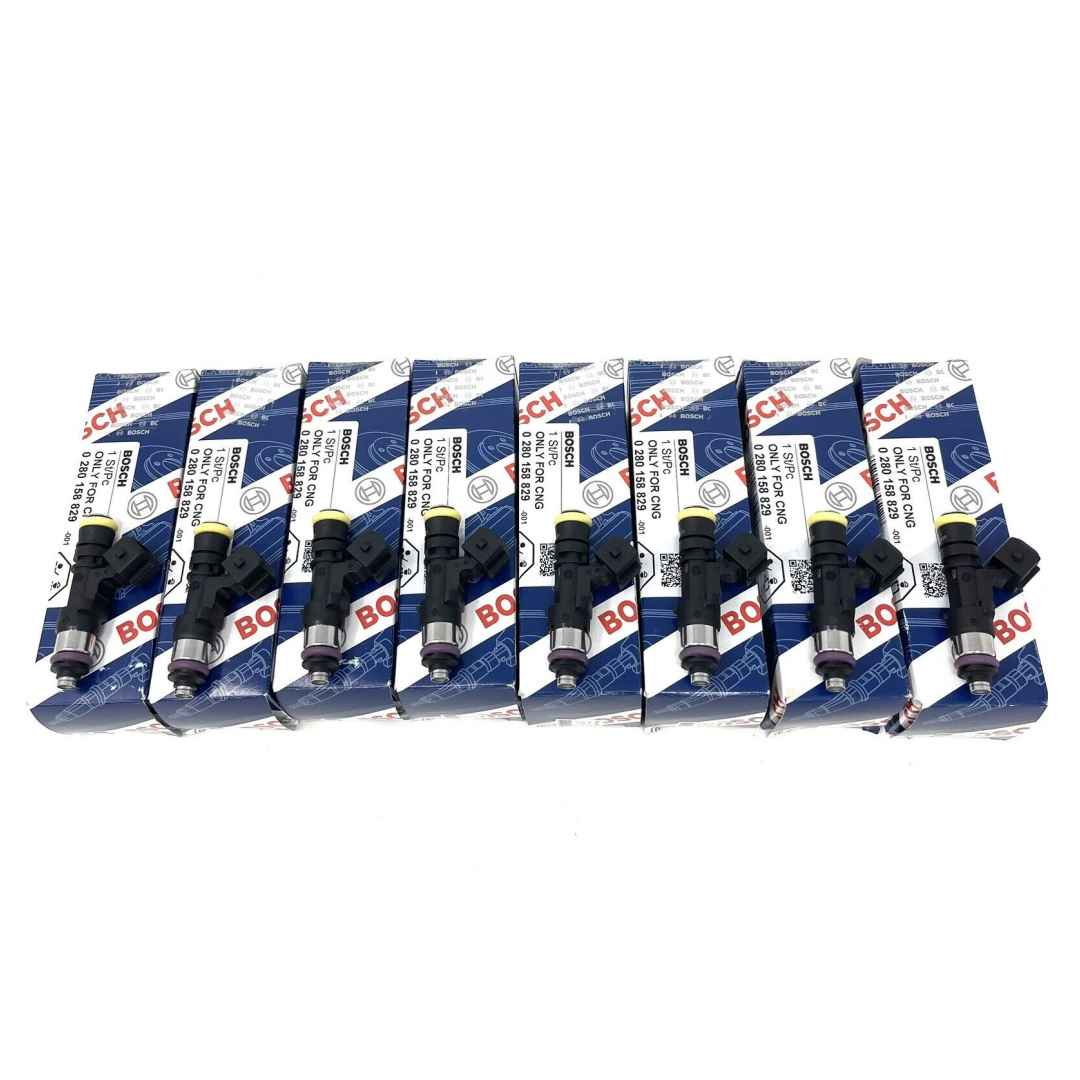

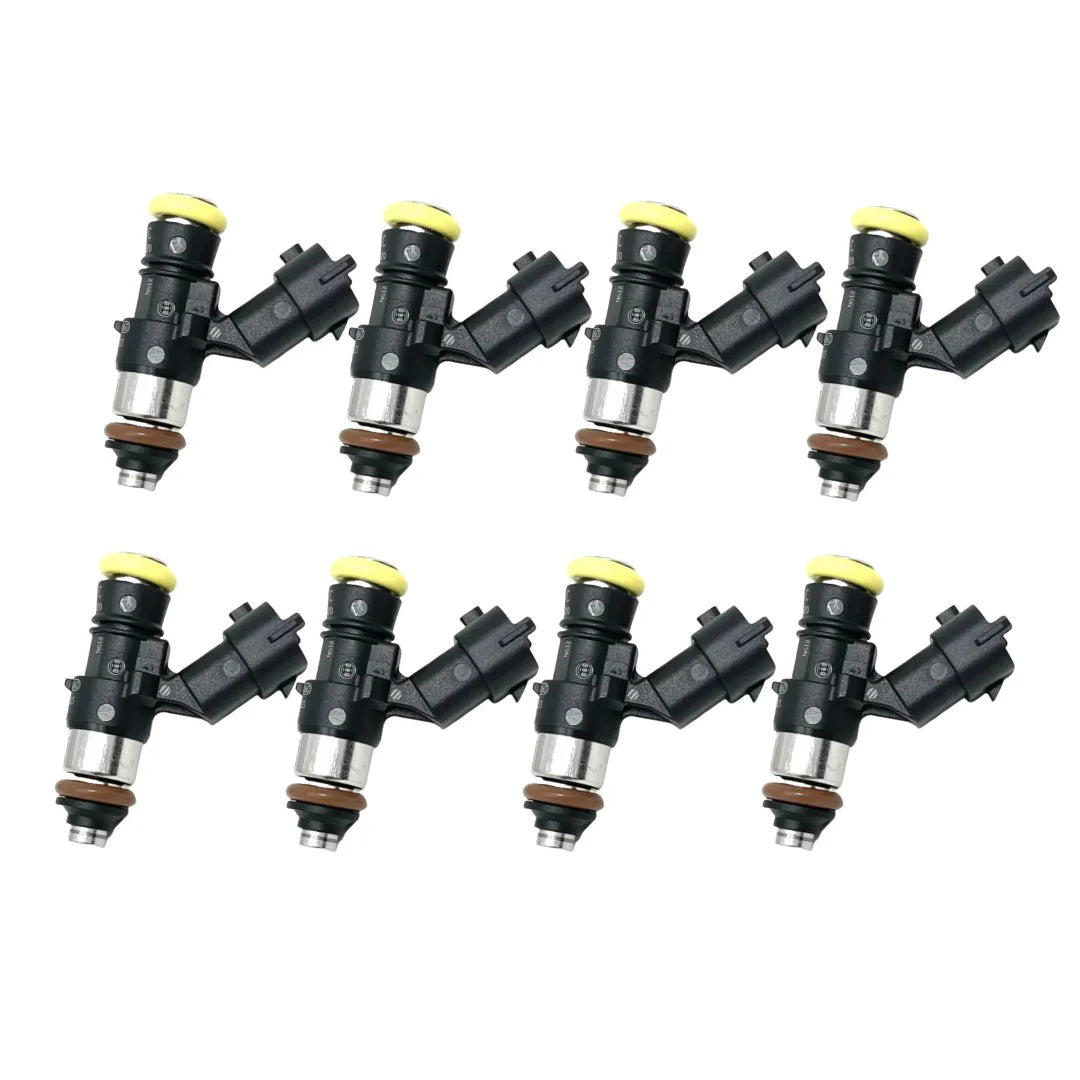

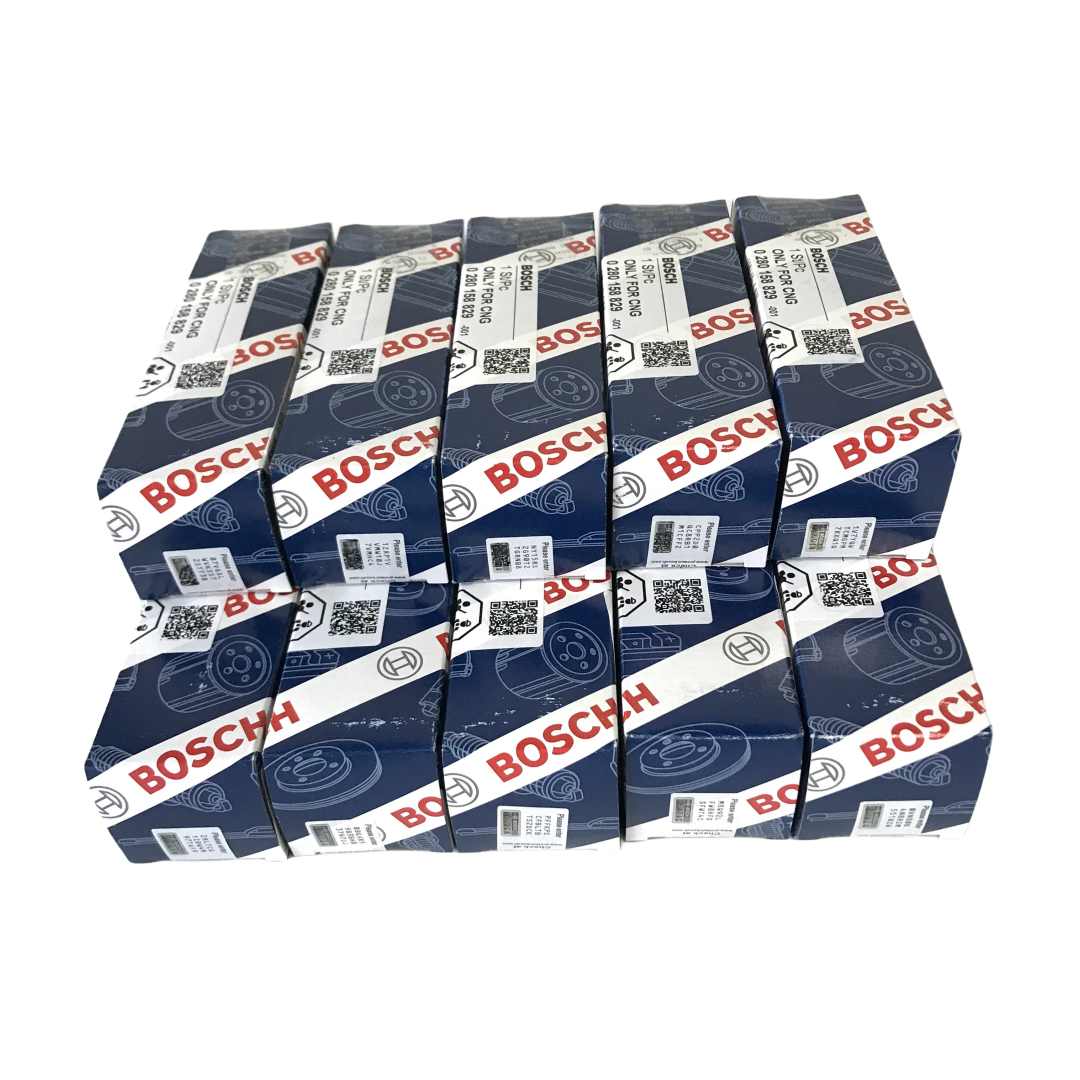

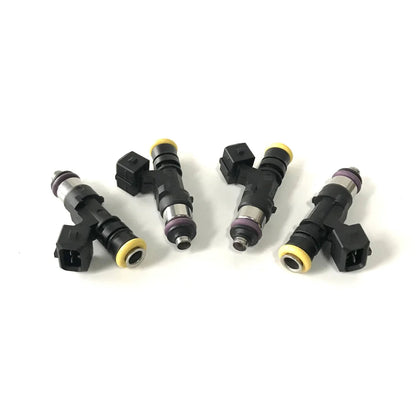

Set of x4 to x8 OEM 2200cc Bosch fuel injectors 0280158829 including 14mm top and bottom o-rings, EV6 or EV1 style plugs. Comes without Top-Hats for specific rail or chassis installation. Professional installation is highly recommended. Tuning is necessary for any change in fuel injectors.
Our injectors will be tested by ASNU machine before shipment and the dynamic flow matching is within 1%.
Product Parameters:
*WARNING: The fuel rail and fuel system must be cleaned before install the injectors.
*Genuine, reliable, new Bosch injectors.
OFF-ROAD USE ONLY
|
Overall length: 65mm |
O-ring seat to seat dimension: 48mm |
|
Top and Bottom o-ring: 14mm |
O-ring centerline to centerline Dimension: 53mm |
|
Injector Body Diameter: 15.2mm |
Static flow rate: 210 lb/hr @ 43.5 PSI ( 3 BAR ) w/Gas 2200 cc/min |
|
Name: 2200cc NGI2 |
Part number: 0280158829 |
|
Quantity : 10 Fuel injectors |
Connector: EV1 Minitimer Jetronic – Adapters Available |
|
Dead time: 0.45ms at 14 volts |
Coil resistance: 9.1 Ohms / High Impedance |
|
Spray pattern: Conical (30 degree) |
Spray angle: Neutral (0 degree) |
|
Acceptable fuels: Gas/Petrol, alcohol/methanol, E85, CNG |
|
|
Unacceptable fuels: Gas/Petrol containing MTBE, specifically VP Q16 and VP Import or other MTBE oxygenated fuels |
|
