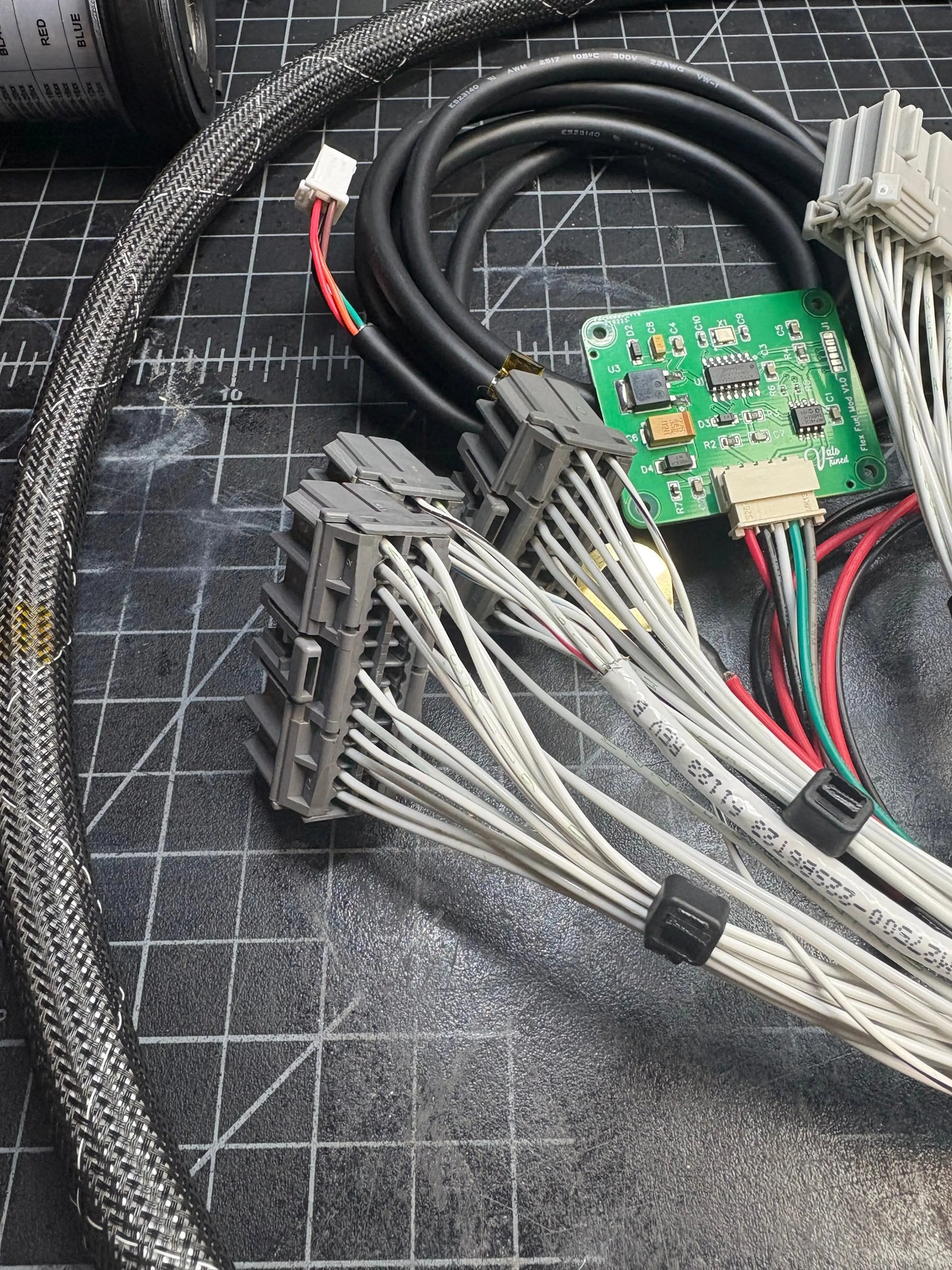

B / D Series OBD1 – In-House Mil-Spec Engine Harness

Designed for: Honda B-series and D-series OBD1 engine platforms

Product Overview

Our B/D Series OBD1 Mil-Spec engine harness is designed and built entirely in-house to provide a clean, reliable, and highly serviceable wiring solution for OBD1 Honda builds. This harness is intended for customers who want motorsport-level materials and construction methods without sacrificing clean installation and long-term reliability.

Every harness is built, labeled, continuity-checked, and tested in-house prior to shipment.

Construction & Materials

M22759/16 and M22759/32 Mil-Spec silver-plated copper wire with PTFE insulation
M22759/55 shielded wire used where required
DR-25 heat-shrink or flame-resistant, clean-cut Mil-Spec braided loom (selectable)
OEM genuine connectors, terminals, and seals
Mil-Spec splices with proper environmental sealing
Black heat-shrink labels with white printed text on all connectors
Clear SCL applied over labels for added durability and protection
Main harness trunk extended approximately 12 inches to allow improved routing, better serviceability, and a cleaner final installation

Standard Features

In-house built and tested
Motorsport-grade materials throughout
OEM-style engine connectors terminated using Mil-Spec methods
Clearly labeled branches for clean routing and easy service
Designed specifically for OBD1 B- and D-series engines

🔌 Engine-Side Connections (Included)

The following engine-side circuits and connectors are included in the standard engine harness. Chassis and dash integrations are handled via optional chassis sub-harnesses.

Fuel injectors
Throttle Position Sensor (TPS)
Manifold Absolute Pressure (MAP)
Intake Air Temperature (IAT)
Engine Coolant Temperature (ECT)
Idle Air Control Valve (IACV)
Distributor / ignition input
Crank and cam position sensors
Knock sensor (if applicable)
Primary oxygen sensor (O2)
Alternator / charging circuit
Starter circuit
Engine grounding provisions

💉 Injector Connector Options

Honda OBD1
Honda OBD2
Bosch EV1
Bosch EV6 / EV14

🔧 Chassis Sub-Harness Options

Chassis sub-harnesses interface the engine harness with the vehicle’s chassis and dash systems.

None – Engine harness only
1993–1995 – Chassis / dash integration
1996–1998 – Chassis / dash integration
1999–2000 – Chassis / dash integration
Universal – For custom or non-OEM chassis applications

Availability may vary depending on vehicle and engine configuration.

Optional Advanced Integrations

We offer additional integrations and supporting systems for customers with more complex build requirements, including but not limited to:

Full charge and ground kits
Flex fuel sensor integration
Wideband O2 integration
Coil-on-plug (COP) conversions
Additional sensor integration

These options are not selectable on this product page. If your build requires advanced integrations or supporting systems, please contact us prior to ordering to discuss compatibility, scope, and pricing.
