OBD1 Engine Harness – Honda B / D / H-Series | Engine Only Kit | VTI StreetSpec

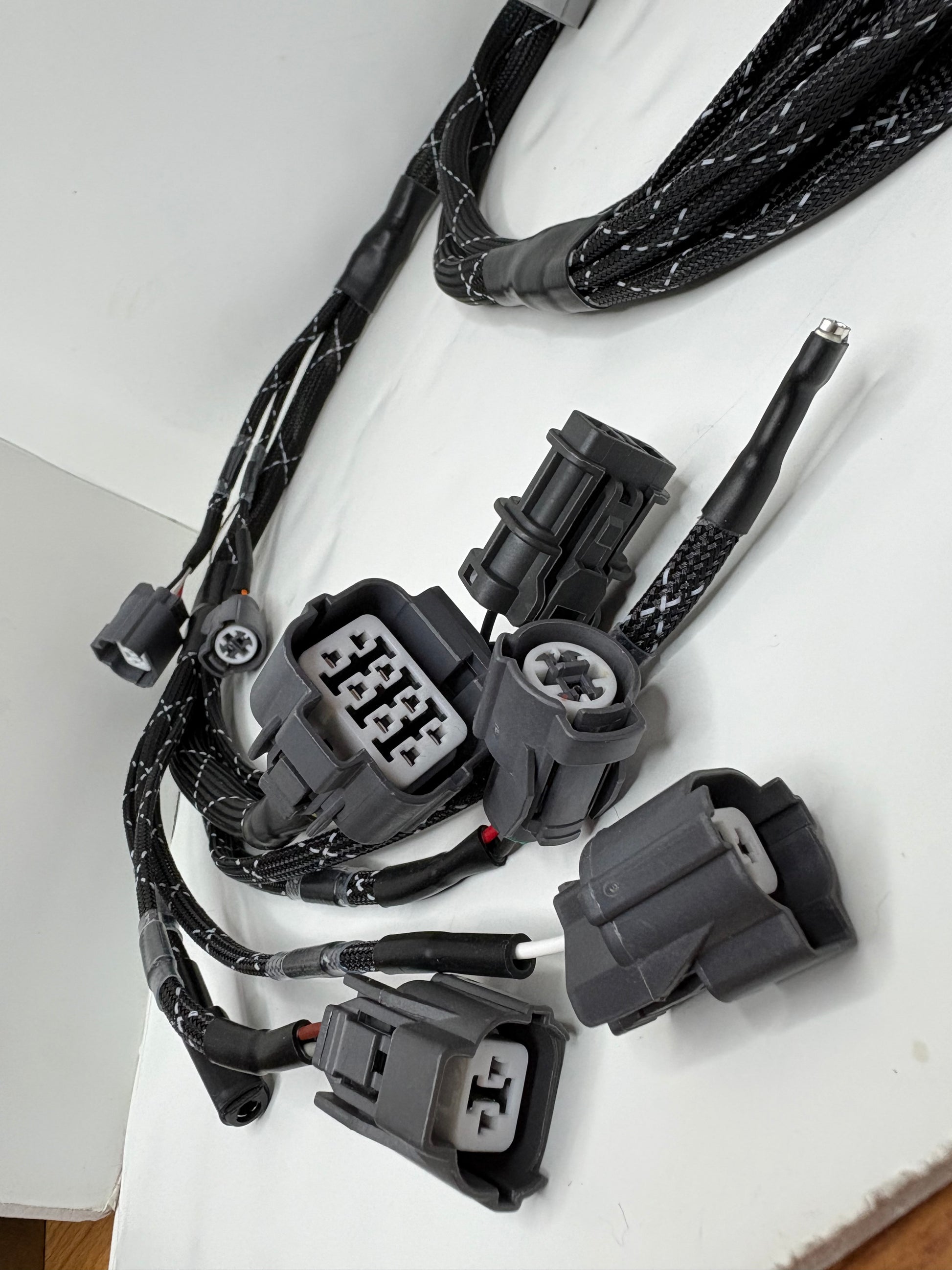

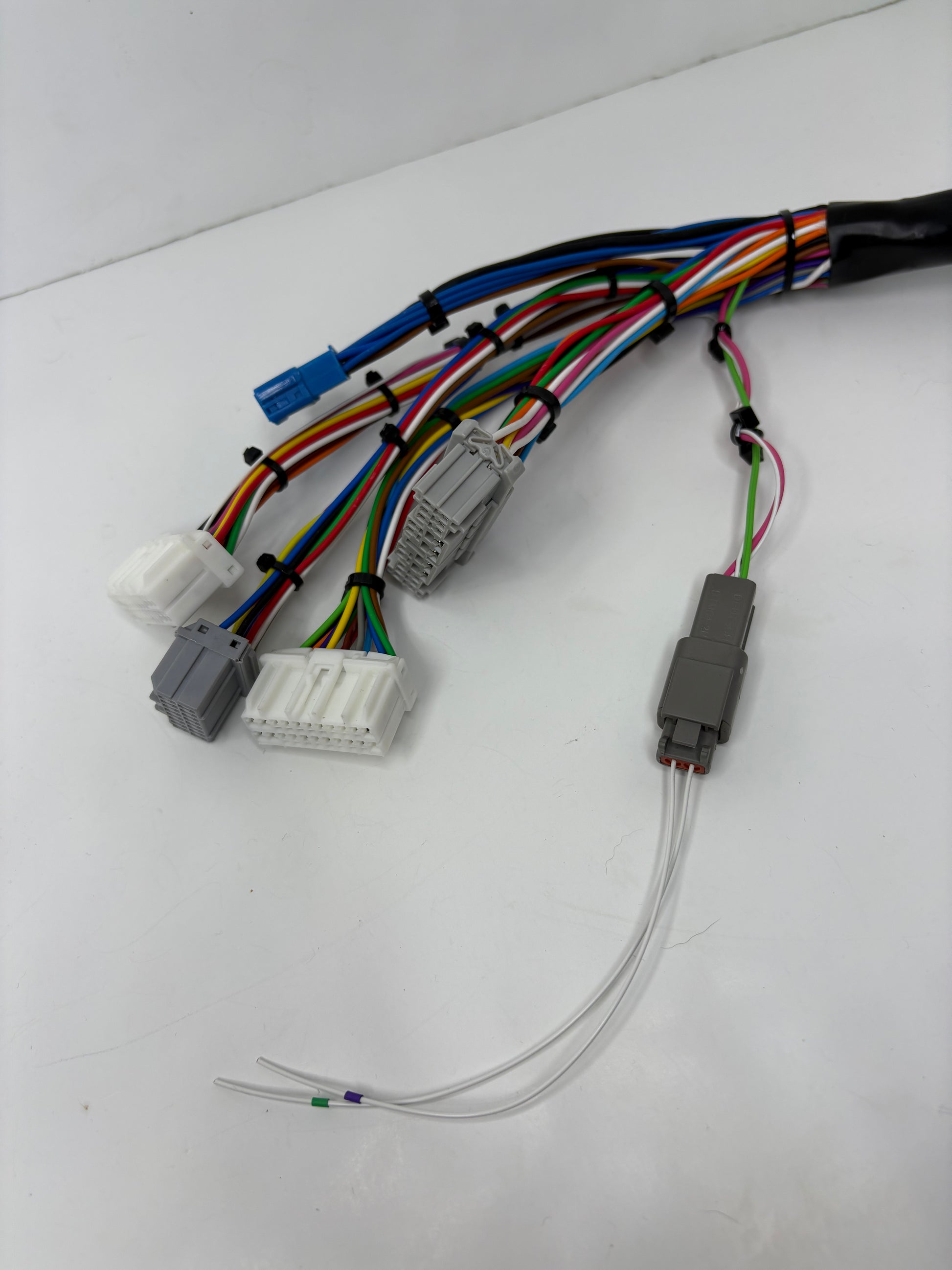

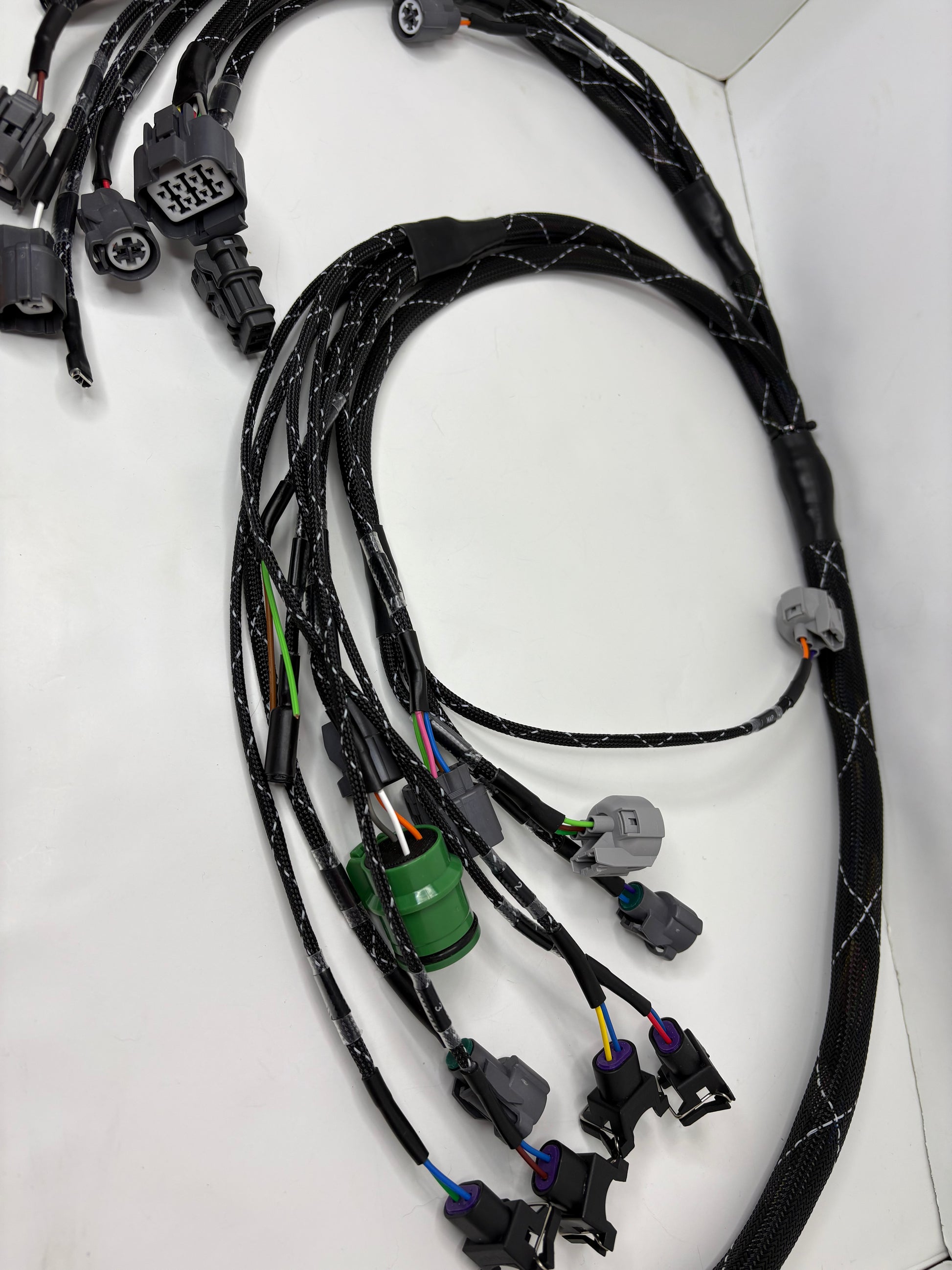

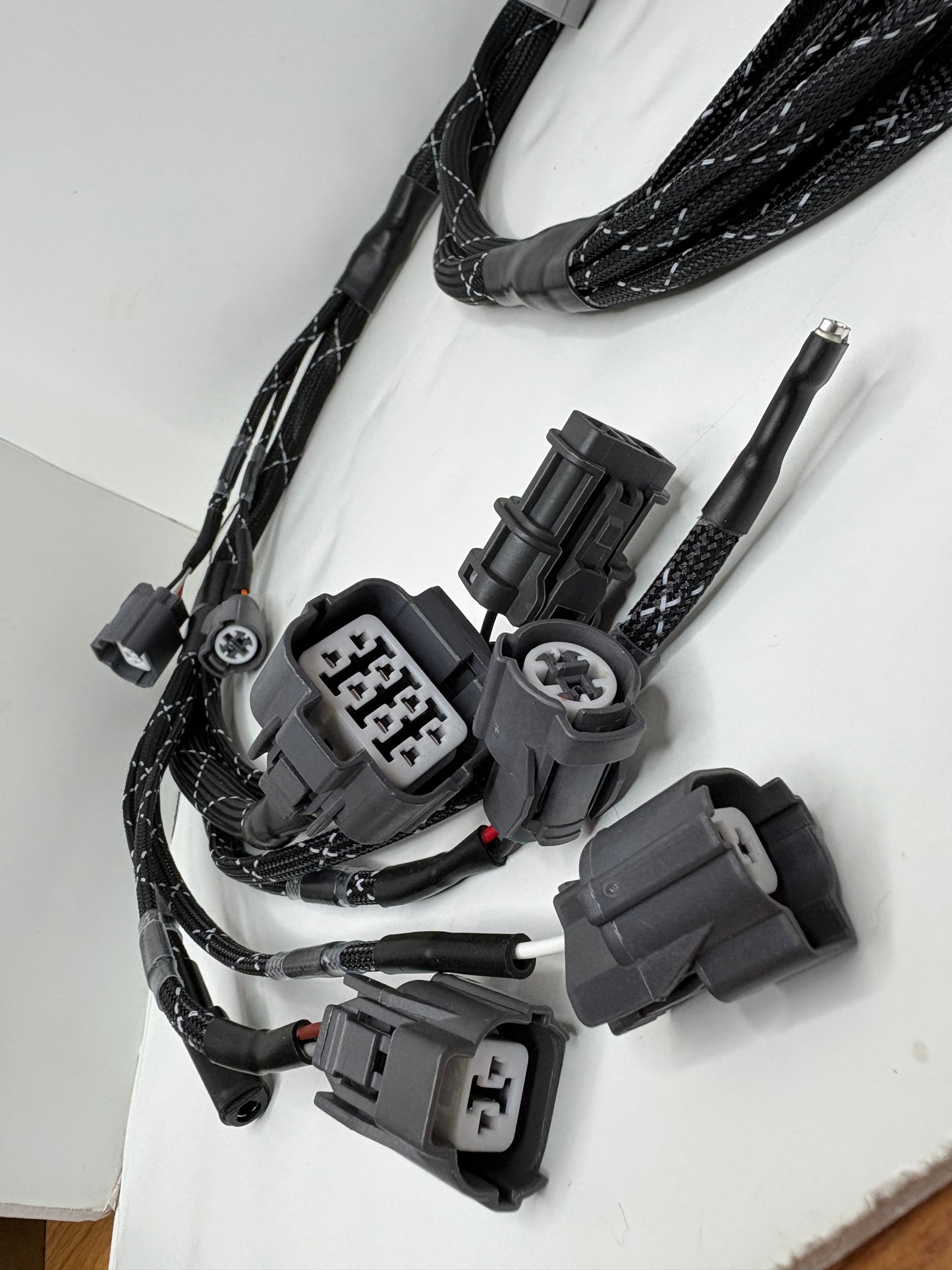

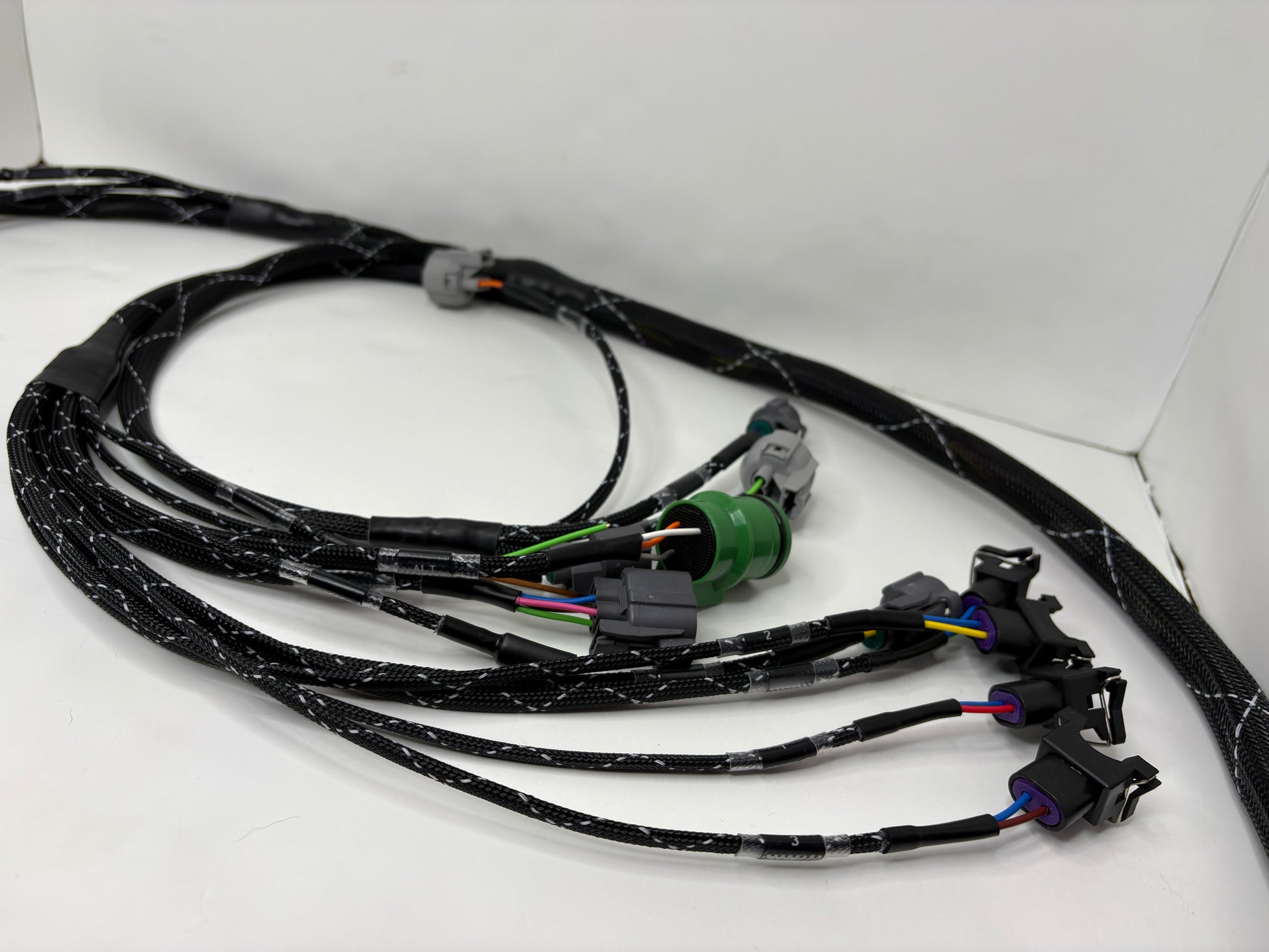

VTI StreetSpec OBD1 Engine Only Kit – Honda B / D / H-Series

All the quality of the VTI StreetSpec platform — without the chassis interface. The Engine Only Kit is built for custom chassis builds, non-standard swaps, or builders who already have their chassis wiring sorted and just need a world-class engine harness with proper power and ground sorted.

Built in-house using TXL automotive-grade wire, finished in FR expandable loom and SCL-style heat shrink. No Tessa tape. No budget shortcuts. Ships ready to drop onto your engine.

What's Included in Every Engine Only Kit

• VTI StreetSpec OBD1 Engine Harness (B / D / H-Series)
• Charge Cable — GXL automotive-grade wire, SCL heat shrink terminated
• Ground Cable Kit — GXL automotive-grade wire, multi-point, motorsports spec termination

No chassis interface harness included. For a full plug-and-play solution, see our application-specific Complete Swap Kits.

What's Built Into Every StreetSpec Harness

• OBD1 ECU configuration — P28 / P30 / P72 compatible
• Clean, optimized branch layout per VTI routing standards
• Pre-wired boost control solenoid lead (ECU output ready — no splicing)
• Pre-wired no-splice wideband input lead
• Injector, distributor, and sensor connections fully terminated
• FR expandable loom throughout — no Tessa tape, no budget filler
• SCL-style heat shrink at all transitions and terminations
• Clearly labeled connections for a confident, straightforward install

Available Base Configurations

• B-Series (standard)
• D-Series (standard)
• H-Series (optional)

Adjustments Available — No Main Loom Rework Required

• Connector end changes (injectors, sensors, etc.)
• Coil-on-plug integration
• Sensor branch removal (factory wideband, unused emissions)
• Minor routing refinements

Need a full custom layout? See our Mil-Spec harness options.

How It Works

After purchase, you'll complete our Build Confirmation Form. This locks in your exact ECU, sensor, and engine configuration before your kit ships — built ahead, finished for your setup, ready to install.
