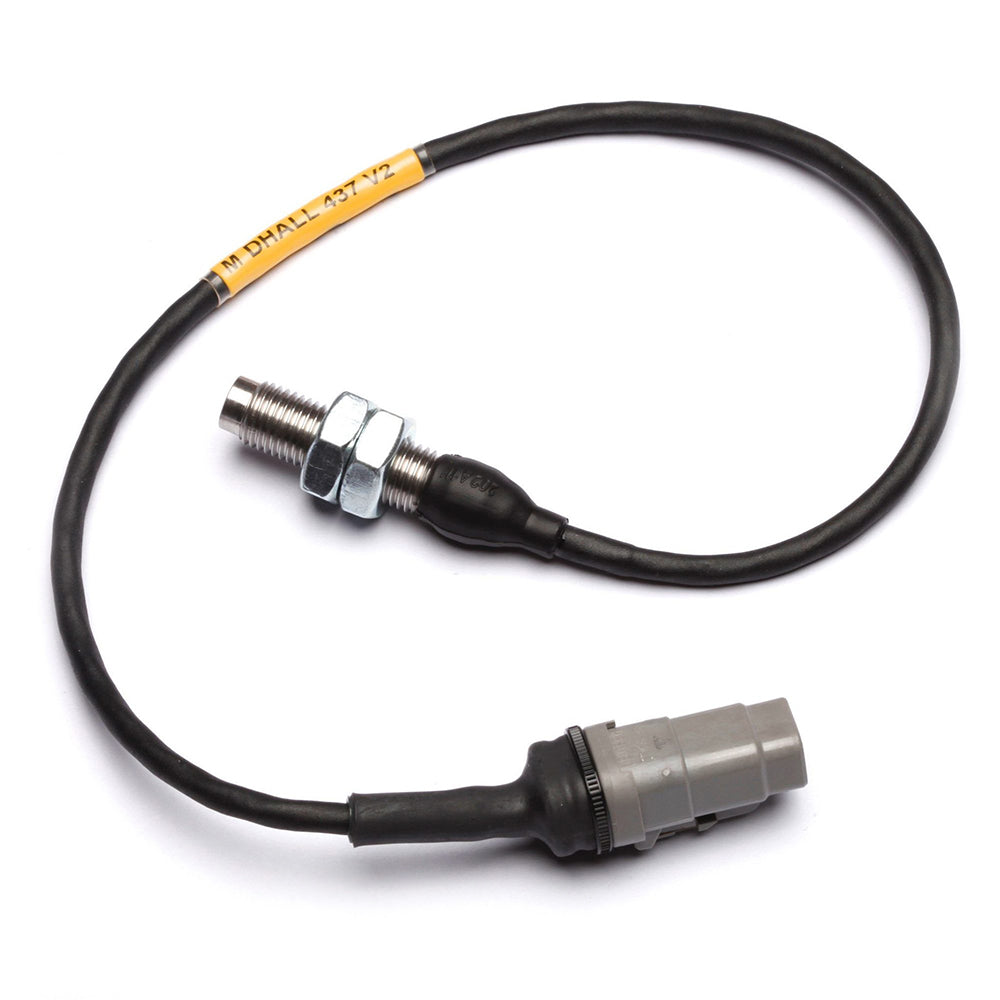

T1 Race Differential Hall Sensor 437 Crank & Cam

T1 4-Pin Cam/Crank Sensor Wiring Guide (Mil-Spec)

T1 4-Pin Cam/Crank Sensor Wiring Guide (Mil-Spec Method)

Correct Pinout, 12V Power Strategy & Proper Shield Termination

The T1-style 4-pin cam/crank sensor is a dual Hall-effect trigger designed to output independent cam and crank position signals. It uses a 4-pin DTM connector with the following layout:

  • Pin 1 — Ground
  • Pin 2 — Cam Signal
  • Pin 3 — Crank Signal
  • Pin 4 — Power (8–16V input)

Because this sensor accepts 8–16 volts, it is intended to be powered from a clean, switched 12V ignition source — not a 5V reference circuit unless specifically required by your ECU configuration.

This guide explains the correct pinout, proper shielding strategy, and why the shield drain should never be used as the primary ground conductor in a true mil-spec harness.

Understanding the Electrical Design

This sensor outputs two independent digital Hall signals: cam position and crank position.

It requires switched 12V power (8–16V operating range) and a dedicated sensor ground. Each of these circuits should remain electrically independent to preserve trigger stability and noise margin.

Even though some harnesses reduce wire count by using the cable shield as ground, that approach compromises signal integrity.

Why Some Harnesses Use the Shield as Ground

A common shortcut method uses 3 internal conductors (Power, Cam, Crank) with the shield drain tied to Pin 1 (Ground). Electrically, this works because Hall sensors draw very low current — but voltage drop is not the real concern. Noise isolation is.

Why Shield Drain Should NOT Be Used as Ground

The Shield Is Meant for EMI Protection

A cable shield exists to absorb electromagnetic interference, protect low-voltage signals, and terminate noise safely at ECU ground. When you use the shield as a current-carrying ground conductor, you introduce voltage potential onto the shield itself — reducing its effectiveness as a noise barrier.

Trigger Systems Are Extremely Sensitive

Cam and crank inputs control ignition timing, injector timing, and sequential synchronization. Poor ground reference can cause sync loss, high-RPM breakup, random misfires, and ECU trigger errors. Even if a vehicle appears to “run fine,” improper grounding reduces electrical noise margin. In professional motorsport wiring, margin matters.

Correct VTI Wiring Layout for T1 4-Pin Sensor

Pin 1 — Ground

Dedicated conductor. Run directly to ECU sensor/trigger ground. Do not use chassis ground. Do not use shield drain.

Pin 2 — Cam Signal

Dedicated conductor to ECU cam input.

Pin 3 — Crank Signal

Dedicated conductor to ECU crank input.

Pin 4 — Power

Switched 12V ignition feed (8–16V supported). Use a clean, properly fused ignition source.

VTI engine harnesses use this exact 4-conductor shielded layout for all cam/crank trigger circuits — no shield-as-ground shortcuts, no shared return paths.

→ Shop the VTI StreetSpec OBD1 Engine Harness — Mil-spec trigger circuit wiring, proper shield termination, TXL construction throughout.

Proper Shield Termination Strategy

  • Use a 4-conductor shielded cable or two twisted pairs with overall shield
  • Terminate the shield drain at the ECU sensor ground only
  • Leave shield floating at the sensor connector
  • Do not bond shield to chassis

This preserves shielding integrity while maintaining clean signal reference.

Recommended Wire Construction (Mil-Spec Standard)

For professional harness builds:

  • M22759/32 (Spec 55) conductors
  • Twisted signal pairs (~1 twist per inch)
  • Overall braided or foil shield
  • DR-25 heat shrink loom
  • Proper strain relief and transitions
  • ECU-side shield termination only

No shared return paths. No chassis ground splices. No shield-as-ground shortcuts.

When Does Shield-As-Ground Work?

It may function on short runs, in low EMI environments, or in budget builds — but it is not the standard for professional motorsport harness design. VTI harness construction prioritizes signal integrity and long-term stability over minimum conductor count.

Final Recommendation

If you are building a proper harness: use four conductors, twist signals correctly, terminate shield properly, and power from a clean 12V source.

Cam and crank signals are foundational to engine control. Everything downstream depends on their stability.

Reference Pin Layout

DTM 4-Pin (Front View – Pin Side)

1 — Ground
2 — Cam Signal
3 — Crank Signal
4 — Power (8–16V)

DTM 4-Pin Connector Pinout
