Complete Boost Controller Wiring & Setup Guide for OBD1 P28 & Hondata S300
MAC 3-Port & 4-Port Solenoid Wiring, Plumbing & PWM Configuration
This guide covers proper boost solenoid wiring, vacuum routing, and Hondata S300 configuration for OBD1 P28 ECUs.
Primary coverage includes:
• MAC 3-port (interrupt style)
• MAC 4-port (true dual port control)
• External wastegates
• Blow-off valve routing considerations
• Street Spec harness integration (C101 strategy)
• Hondata S300 v3 PWM configuration
• Open vs Closed loop boost
• Boost by gear and boost by speed
• Overboost fail-safes
This is a complete technical reference.
Understanding PWM Boost Control (OBD1 Context)
A boost solenoid is a PWM-controlled valve that regulates pressure to the wastegate.
The ECU rapidly pulses the solenoid at a specific frequency.
Duty cycle determines how much pressure reaches the gate.
Higher duty = more boost (in interrupt configuration).
Boost control is not voltage based.
It is frequency + duty cycle based.
Solenoid Types Covered

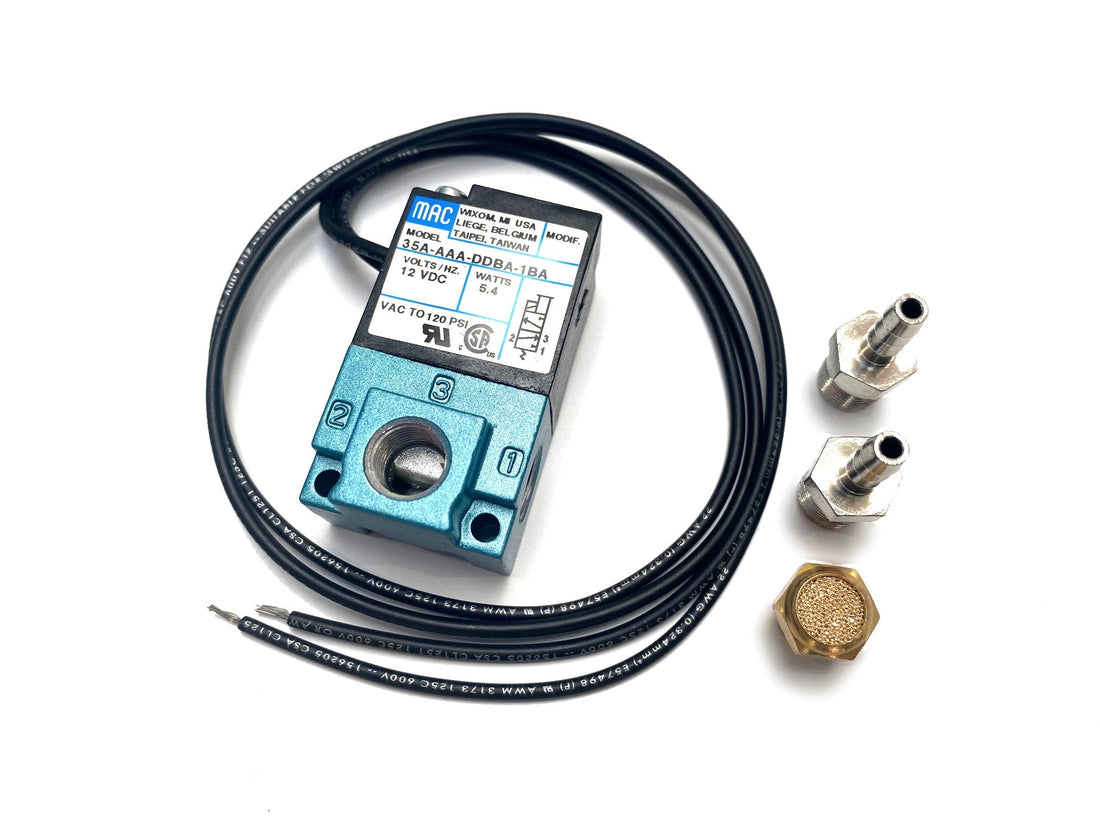

MAC 3-Port (Most Common)
Typical specs:
• 12V coil
• ~25–35 ohm
• ~0.8–1.2A draw
• Non-polarized (either pin can be power)
Used in interrupt configuration.
Reliable and fast response.
MAC 4-Port (True Dual Port Control)
Used for:
• External wastegate dome control
• Faster spool
• Greater top-end boost control authority
Allows pressure to be applied to both sides of diaphragm.
More complex but more precise.
Wiring Strategy — OBD1 P28
Primary Recommended Wiring (Clean Method)
Solenoid Pin 1 → Switched 12V (fused ignition)
Solenoid Pin 2 → ECU controlled output
Grounding is handled internally through ECU driver when using low-side control.
ECU Output Options
Option 1 — Hondata S300 Configurable Output (Preferred)
Use S300 boost control output pin (varies depending on board mod).
Best for:
• Dedicated boost control
• Closed loop precision
• Clean calibration
Option 2 — A17 Repurpose (Possible)
A17 (IACV output) can be reassigned for boost control.
Only viable if:
• IACV not required
• Proper ECU configuration applied
Street Spec Harness C101 Integration Strategy
All VTI Street Spec harnesses include two auxiliary wires routed to C101.
C101 Pins:
• Pin 3
• Pin 4
These are typically unused or lightly powered chassis circuits.
This allows:
• Engine bay termination directly at boost solenoid
• No need to open main harness trunk
• Cleaner install for retrofits
Procedure:
-
Identify C101 pins 3 & 4
-
Cut or depin from chassis side
-
Repurpose wires for:
-
12V ignition feed
-
ECU boost signal return
-
Important:
This method works well for clean installs
But is not as electrically ideal as direct ECU wiring.
Signal integrity may be slightly reduced compared to dedicated trunk routing.
For high-end motorsport builds, dedicated twisted pair routing is recommended.
Proper Wire Gauge & Power
Use:
• 18–20 AWG TXL minimum
• Fused ignition source (5A fuse recommended)
Do not power from:
• Coil feed
• Injector feed
• Fuel pump circuit
Boost solenoids create electrical noise.
Clean ignition source prevents signal contamination.
Vacuum Plumbing — MAC 3-Port (Interrupt Style)
Correct routing:
Turbo Compressor Source → Port 1
Port 2 → Wastegate Top Port
Port 3 → Vent (filtered or short hose)
Bottom wastegate port → Boost reference source (direct)
This is interrupt style.
Solenoid interrupts pressure reaching the top port.
More duty cycle = more interruption = more boost.
MAC 4-Port — True Dual Port Control
Porting configuration:
Compressor source → Solenoid supply
Solenoid outputs → Top and bottom wastegate ports
Allows ECU to apply pressure to dome for faster spool and tighter control.
Recommended for:
• Larger external gates
• High boost precision setups
Blow-Off Valve Reference Notes
BOV should reference:
• Intake manifold vacuum source
Never share boost solenoid signal line with BOV reference.
Dedicated manifold vacuum line recommended.
Hondata S300 v3 Configuration
Step 1 — Enable Boost Control
Parameters → Boost Control
Enable PWM boost control.
Step 2 — Set PWM Frequency
Recommended starting range:
• MAC 3-port: 19–33 Hz
• MAC 4-port: 25–40 Hz
Start at 30 Hz for most MAC valves.
Too low frequency = unstable boost
Too high = overheating solenoid
Step 3 — Open Loop vs Closed Loop
Open Loop
Duty cycle table only.
Boost determined purely by pre-set duty values.
Pros:
• Simple
• Predictable
Cons:
• No automatic correction
Closed Loop
Uses boost target and feedback.
Pros:
• More consistent boost
• Compensates for weather
Requires:
• Proper PID tuning
• Stable MAP signal
Boost by Gear & Boost by Speed
S300 allows:
• Boost target per gear
• Boost target per vehicle speed
Used for:
• Traction management
• Rolling anti-lag strategies
• Progressive ramping
Requires clean VSS signal.
Fail-Safes & Protection
Recommended:
• Boost cut above target + safety margin
• MAP sensor overboost shutoff
• IAT-based boost reduction
• AFR-based boost cut (advanced builds)
Never rely solely on wastegate spring.
Troubleshooting
Symptom: Boost spikes
Cause: Incorrect plumbing or too high duty
Fix: Verify interrupt routing
Symptom: Boost unstable
Cause: Wrong frequency or solenoid vent restriction
Fix: Adjust PWM Hz
Symptom: No boost increase
Cause: Wiring polarity reversed?
Check continuity and ECU output assignment.
Professional Installation Standard
For high-end PCB integration and professional ECU modifications, VTI partners with OxyTuned for advanced board-level boost control and driver circuit work.
For motorsport builds:
• Dedicated twisted signal pair
• Shielded routing
• Proper strain relief
• Thermal isolation from turbo
Boost control is both electrical and pneumatic.
Treat both systems with equal precision.
Final Recommendation
For OBD1 P28 builds:
• Use dedicated ECU output when possible
• Use interrupt style plumbing for 3-port
• Use dome control for 4-port
• Configure PWM correctly
• Always implement overboost protection
Boost control is not just a solenoid.
It is a control system.
Wire it like one.
