Complete Flex Fuel Sensor Wiring & Hondata S300 V3 Setup Guide (OBD1)
GM / Continental 13577379 Ethanol Content Sensor Integration
This guide covers complete installation, wiring, mounting, and configuration of the GM / Continental 13577379 flex fuel sensor for OBD1 P28-style ECUs using Hondata S300 V3.
If you’ve heard about “going flex” but aren’t sure what it actually means — this is your full technical breakdown.
We will cover:
• What flex fuel actually does
• Sensor pinout and signal behavior
• Proper wiring strategy for S300 V3
• D10 digital input reference
• When a VatoTuned converter is required
• Correct fuel system mounting location
• Shielding considerations
• Hondata configuration basics
What Flex Fuel Actually Means
A flex fuel sensor measures ethanol content in the fuel and outputs a frequency-based signal to the ECU.
This allows the ECU to automatically adjust:
• Fueling
• Ignition timing
• Cold start enrichment
• Boost targets (if configured)
Ethanol percentage can vary significantly between pumps and seasons. Without a sensor, you are guessing.
With a sensor, the ECU blends calibrations dynamically.
GM / Continental 13577379 Sensor Overview
This is the most common modern OEM ethanol content sensor.
Also referenced under:
• Continental Flex Fuel Sensor
• GM 13577379
It is a 3-wire frequency-based sensor.
Typical signal behavior:
• ~50 Hz = 0% ethanol
• ~150 Hz = 100% ethanol
The signal is digital square wave.

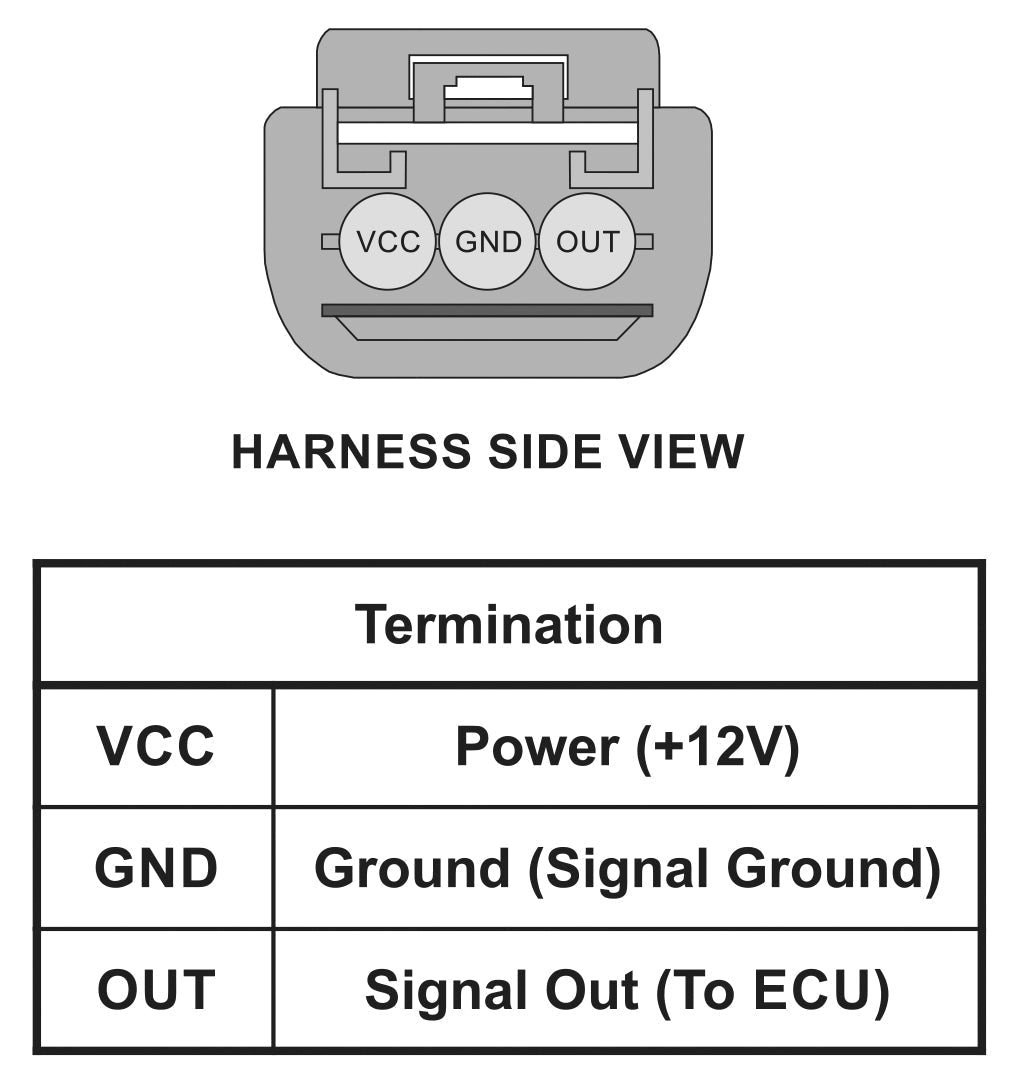

GM 13577379 Pinout (Sensor Side View)
When viewing the sensor connector from the terminal side:
Pin 1 — 12v Supplied
Pin 2 — Ground
Pin 3 — Signal (Frequency Output)
Always verify orientation before crimping.
Wiring Strategy — Hondata S300 V3 (Standard)
Hondata S300 V3 supports native frequency-based flex input.
This is the preferred method.
Standard Wiring
Pin 3 (12V) → Switched ignition source (fused)
Pin 1 (Ground) → ECU sensor ground or clean chassis ground
Pin 2 (Signal) → S300 Digital Input (Flex Fuel Input)
Using D10 as Input (Reference Option)
On some OBD1 setups, D10 (EGR lift input) may be repurposed for digital input.
However:
• D10 is not native frequency flex input
• It may require configuration changes
• S300 V3 dedicated digital input is preferred
Use D10 only when required by hardware configuration.
When a VatoTuned Converter Is Necessary
A VatoTuned flex fuel converter is required when:
• ECU does not support native frequency input
• You are using an ECU without S300 V3
• Only analog inputs are available
The converter translates frequency into analog voltage.
Converter typically breaks out into:
• Power
• Ground
• Ethanol Content Output (0–5V)
• Fuel Temp Output
When using S300 V3, the converter is not required.
Native frequency input is cleaner and more accurate.
Mounting Location — Correct Fuel System Placement
Flex sensors must be installed:
✔ On the low-pressure return side
✔ After the fuel rail
✔ After the regulator
✔ Before the tank return
Do NOT mount:
✖ On high-pressure feed side
✖ Directly after fuel pump
✖ Before regulator
Return-side mounting ensures:
• Stable flow
• Lower pressure stress
• More consistent ethanol reading
Mount sensor securely and isolate from vibration.
Shielded vs Non-Shielded Wiring
The GM 13577379 signal is digital square wave.
For short runs (under ~4 feet):
Non-shielded twisted pair is acceptable.
For longer runs or noisy environments:
Use shielded cable.
If shielded:
• Terminate shield at ECU ground only
• Do not ground shield at both ends
Ground loops can introduce frequency distortion.
Power & Ground Strategy
Pin 3 (12V) should come from:
• Clean switched ignition source
• 3–5A fused circuit
Do not share with:
• Injector feed
• Coil feed
• Boost solenoid feed
Pin 1 (Ground):
Best practice:
Tie to ECU sensor ground network.
This ensures frequency reference stability.
Ethanol Frequency Scaling
Typical GM scaling:
50 Hz ≈ 0% ethanol
75 Hz ≈ 25% ethanol
100 Hz ≈ 50% ethanol
125 Hz ≈ 75% ethanol
150 Hz ≈ 100% ethanol
S300 allows frequency calibration input for ethanol percentage blending.
Always confirm calibration table in SManager.
Hondata S300 V3 Setup Basics
In SManager:
Parameters → Flex Fuel
Enable Flex Fuel Input
Select Digital Input
Assign proper input pin
Configure:
• Ethanol content blending table
• Fuel trim blending
• Ignition trim blending
Optional:
• Boost by ethanol content
• Cold start compensation
Verify frequency reading before enabling blending.
Common Mistakes
• Mounting on feed side
• Poor ground reference
• Sharing power with noisy circuits
• Forgetting to enable flex input in software
• Using converter when native input is available
• Leaving signal wire unshielded near coils
How VTI Simplifies Flex Integration
VTI offers plug-and-play flex fuel integration solutions designed for OBD1 platforms.
Our harness systems include:
• Proper digital input routing
• Clean ignition sourcing
• Sensor ground strategy
• Optional converter integration when required
Flex fuel integration should not require cutting up a main harness trunk.
Our systems are designed with expansion in mind.
Final Recommendation
For OBD1 P28 + Hondata S300 V3:
• Use native digital input
• Mount sensor on low-pressure return side
• Use clean power and proper ground
• Shield signal when necessary
• Confirm frequency reading before tuning
Flex fuel is not just an ethanol sensor.
It is a dynamic fuel strategy.
Integrate it correctly.
