Honda Prelude SH ATTS Wiring Issue – 14-Pin Connector Subharness Diagnostic Case Study
When installing a VTEC Innovations 1997–2001 Honda Prelude subharness and StreetSpec H-Series engine harness on a 2000 Honda Prelude SH, a unique chassis-side wiring scenario surfaced involving the factory ATTS system.
This case highlights the importance of platform-specific Honda wiring knowledge, connector identification, and structured diagnostic methodology during standalone and engine harness integration.
Vehicle Configuration
• 2000 Honda Prelude SH
• H-Series engine platform
• Factory ATTS chassis
• ATTS unit physically removed

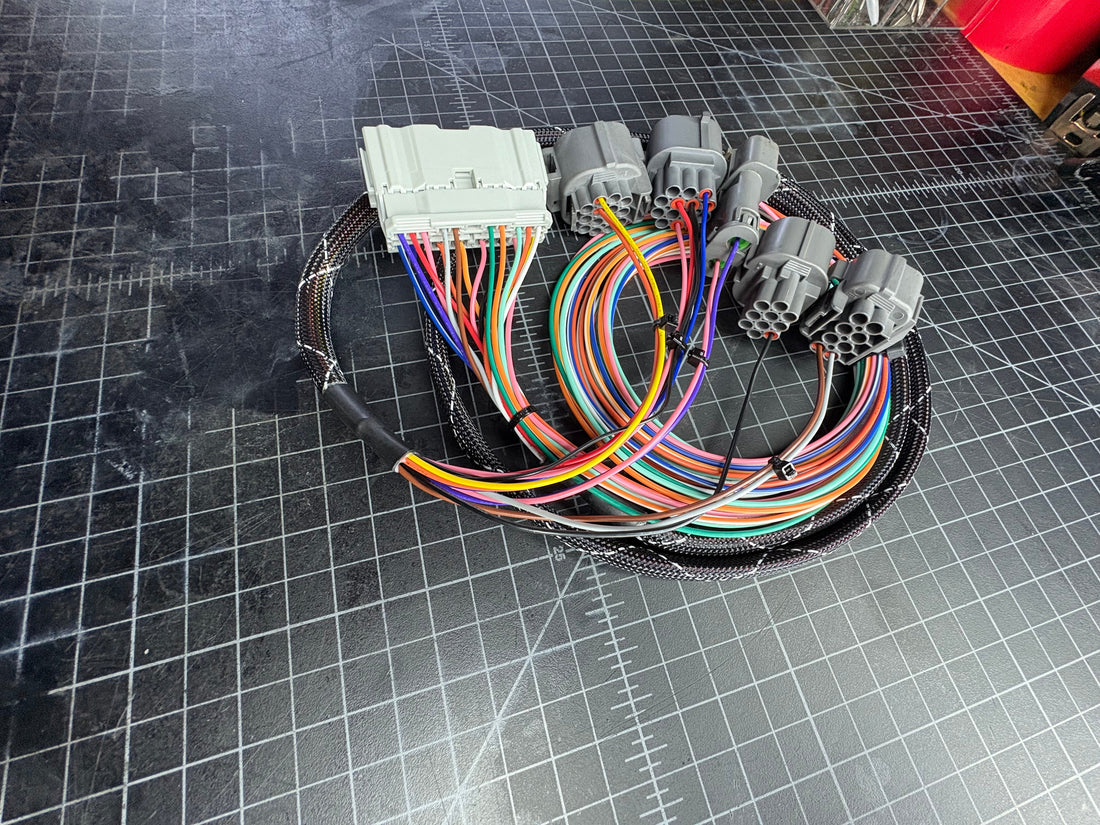

• VTEC Innovations 97–01 Prelude Subharness
• VTEC Innovations StreetSpec H-Series Engine Harness
The SH model’s ATTS (Active Torque Transfer System) introduces additional chassis connectors in the engine bay not present on base Prelude models.
The 14-Pin Connector Discovery
During installation, the customer identified two physically identical 14-pin connectors in the engine bay:
• One gray 14-pin connector
• One blue 14-pin connector
The VTEC Innovations subharness provides a gray 14-pin chassis integration connector, designed to mate with the appropriate factory chassis plug.
At first glance, gray-to-gray appeared correct and logical.
However, after connecting the gray harness connector to the gray chassis connector, issues appeared:
• Fuel pump would not prime correctly
• Ground conditions appeared inconsistent
• System behavior did not match OEM functionality
Diagnostic Process
We immediately stepped in to assist the customer with structured diagnostics:
• Verified subharness installation
• Confirmed engine harness lead termination
• Reviewed grounding points
• Checked fuel pump circuit integrity
• Confirmed ECU compatibility
All customer-installed wiring checked out correctly.
At this stage, attention returned to the dual 14-pin connector scenario.
ATTS Platform Identification
Upon reviewing manufacturer documentation for the SH ATTS chassis, we identified that:
• The ATTS system utilizes a dedicated gray 14-pin connector in the engine bay
• The second 14-pin connector (blue) contains primary body circuits required for engine operation
This meant the original gray-to-gray assumption had actually connected the harness to the ATTS circuit connector — not the primary chassis integration connector.
The Resolution
As a controlled test, the 14-pin connection was switched from:
Gray harness → Gray chassis
To:
Gray harness → Blue chassis
Immediately:
• Fuel pump primed normally
• Grounds stabilized
• OEM-like operation restored
• All circuits behaved as intended
The system functioned exactly as a factory-style integration should.
Key Takeaway for 1997–2001 Prelude SH (ATTS) Owners
If working with:
• 1997–2001 Honda Prelude SH
• ATTS-equipped chassis
• ATTS unit removed
• Engine harness or subharness integration
You may encounter two physically identical 14-pin connectors in the engine bay.
The correct chassis integration connector for body circuit operation is the blue 14-pin connector, not the gray ATTS connector.
This distinction is critical for:
• Fuel pump operation
• Ground circuit stability
• Proper ECU communication
Installation Note Update
Based on this case, VTEC Innovations installation documentation now includes specific reference to:
• ATTS-equipped Prelude SH chassis
• Dual 14-pin engine bay connectors
• Correct connector identification during subharness integration
Why Platform Knowledge Matters
Honda platforms often appear visually similar across trims and model years. However, systems like ATTS introduce wiring differences that can affect:
• Chassis integration
• Ground routing
• Power distribution
• Circuit continuity
Proper diagnosis requires more than connector shape matching — it requires platform-specific architecture understanding.
