The Problem Most Builders Don’t See

In OBD1 Honda distributor systems, crank and cam trigger signals are low-voltage, high-sensitivity inputs. CKP, TDC, and CYP signals operate in a noise-prone environment — surrounded by ignition energy, alternator ripple, injector switching, and high-current ground paths.

When these trigger wires are not shielded properly, you don’t always get an immediate failure.

You get:

• Intermittent misfires
• Random TDC/CYP codes
• Startup stall conditions
• False sync loss at higher RPM
• Hard-to-trace drivability issues

Many aftermarket harnesses skip proper shielding entirely — or terminate shields incorrectly.

That’s where long-term instability begins.

---

Understanding the OBD1 Distributor Signal Layout

A typical OBD1 7-pin distributor includes:

• CKP (Crank Position)
• TDC (Top Dead Center)
• CYP (Cylinder Position)
• Ignition control
• Switched 12V
• Grounds

The CKP, TDC, and CYP circuits are the critical trigger pairs. These are the wires that must be protected from electrical interference.

They carry small signal voltage.
They do not tolerate noise.

---

What Causes Signal Noise?

Inside an engine bay you have:

• Coil discharge events
• Alternator field switching
• Injector pulse collapse
• Starter inrush current
• Poor chassis grounding

Without shielding, trigger wires can act like antennas.
They absorb electromagnetic interference (EMI) and feed it directly into the ECU’s trigger inputs.

This can create phantom trigger events or corrupt the waveform the ECU expects to see.

At low RPM it may appear fine.
At high RPM or under load, problems surface.

---

Proper Shield Strategy (What Should Actually Be Done)

At VTI, proper shield strategy includes:

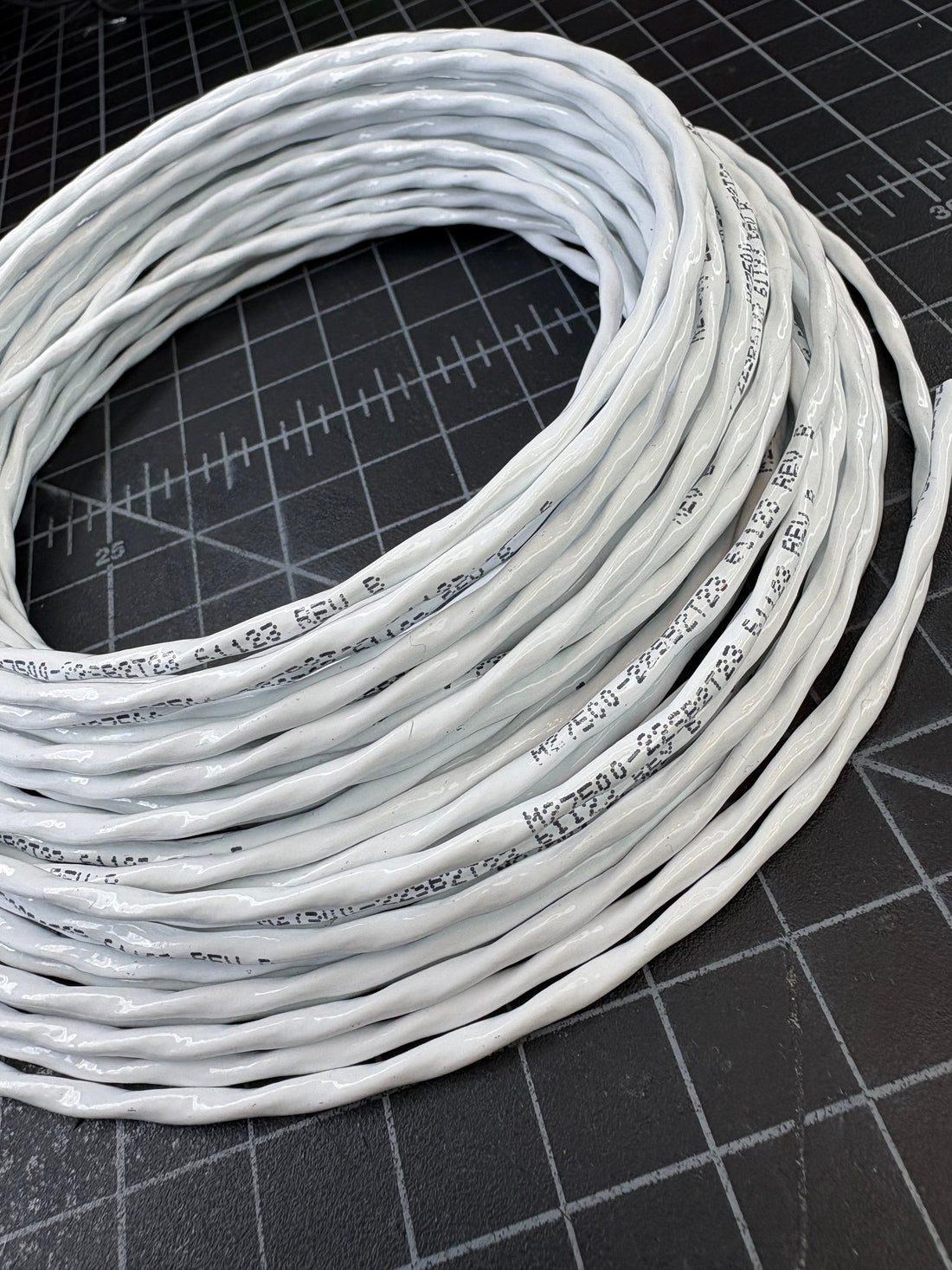

• Twisted pair routing for CKP, TDC, and CYP
• Dedicated shielded cable per signal pair
• Shield drain terminated at ECU side only
• No shield grounding at sensor end
• Separation from high-current trunk wiring

The shield acts as a noise barrier — absorbing interference before it reaches the signal conductors.

Terminating the drain at the ECU side prevents ground loops while still providing a reference path for interference.

Grounding both ends can create a loop.
Leaving both ends floating defeats the purpose.

---

The Common Mistakes

Here’s what we often see:

• No shielding at all
• Shield tied into chassis ground randomly
• Shield tied into ignition ground
• Shield grounded at both ends
• Shield wrapped around multiple signal groups improperly

All of these can create unstable trigger behavior.

Sometimes the vehicle runs “okay” — until temperature, RPM, or electrical load changes.

Then the intermittent issues begin.

---

Why This Matters in Performance Builds

When you introduce:

• Standalone ECUs
• Higher compression engines
• Coil-on-plug conversions
• Aftermarket ignition systems
• Relocated battery setups

You increase the electrical noise environment significantly.

That makes proper shield strategy even more important.

A clean trigger signal is foundational to ignition timing accuracy.
Ignition timing accuracy is foundational to engine safety.

---

Street-Spec vs Blackline: Shield Philosophy

Both VTI Street-Spec and Blackline harness systems use:

• Shielded trigger wiring
• ECU-side drain termination
• Structured routing away from high-current paths

The difference between tiers is aesthetic execution — not signal integrity.

Shield discipline remains constant across both.

---

The Takeaway

Trigger instability in Honda OBD1 systems is rarely a “bad distributor.”
More often, it’s poor wiring architecture.

Proper shield strategy:

• Prevents phantom codes
• Stabilizes RPM sync
• Improves startup behavior
• Protects timing accuracy
• Increases long-term reliability

It’s not a visible feature.
But it is one of the most important.
